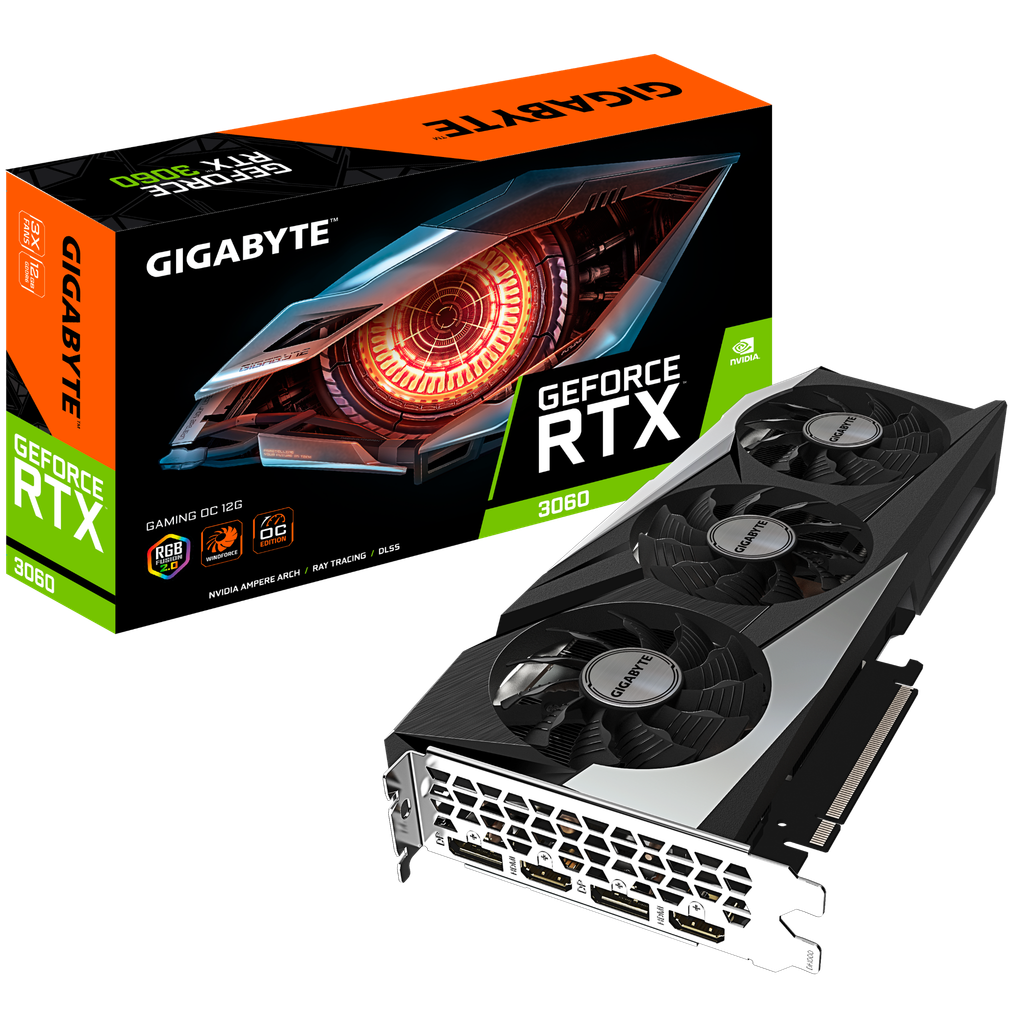

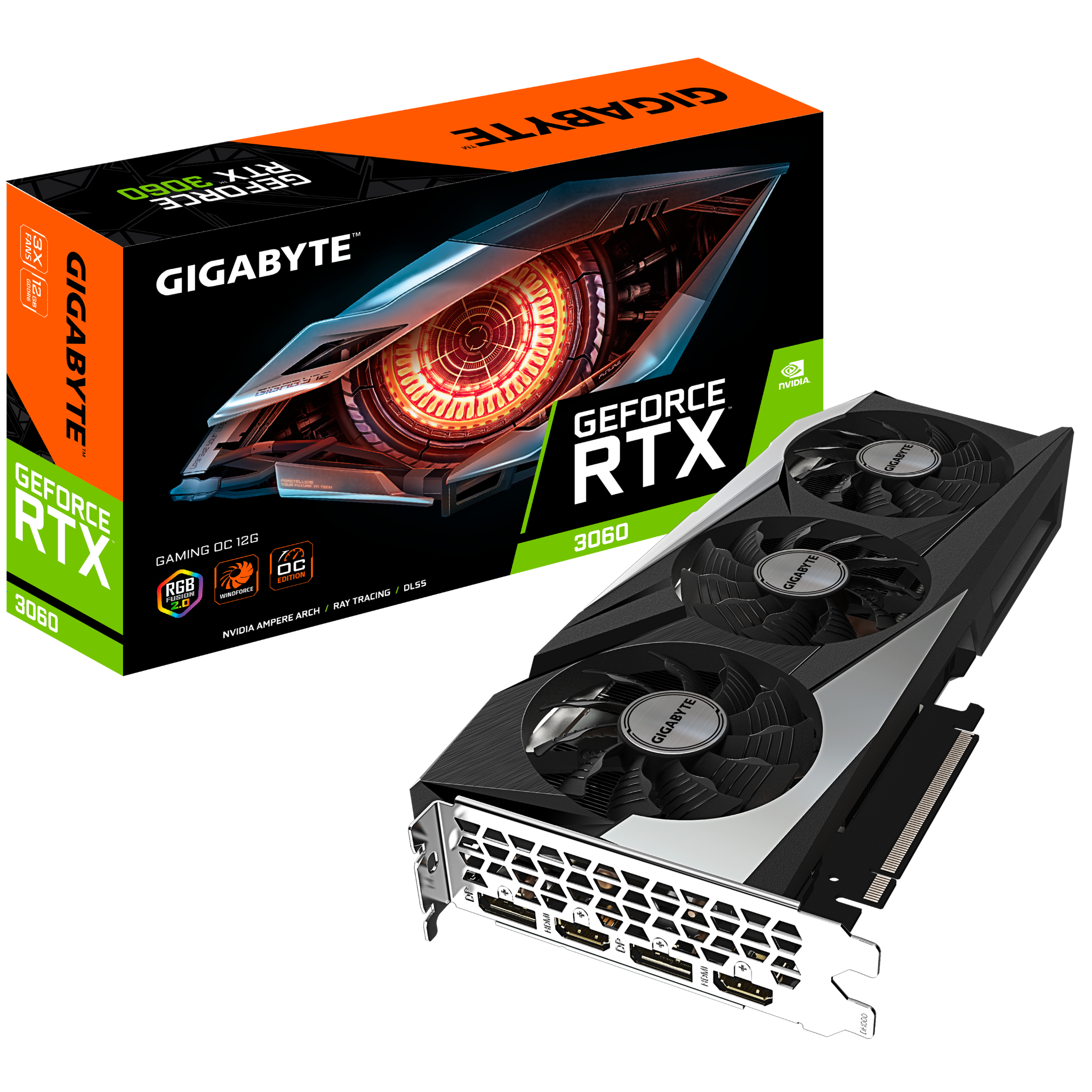

VGA Gigabyte RTX 3060 12G GDDR6 Gaming OC V2 (GV-N3060GAMING OC-12GD) (rev. 2.0)

Graphics Processing

GeForce RTX™ 3060

Core Clock

1837 MHz (Reference Card: 1777 MHz)

CUDA® Cores

3584

Memory Clock

15000 MHz

Memory Size

12 GB

Memory Type

GDDR6

Memory Bus

192 bit

Memory Bandwidth (GB/sec)

360 GB/s

Card Bus

PCI-E 4.0 x 16

Digital max resolution

7680x4320

Multi-view

4

Card size

L=282 W=117 H=41 mm

PCB Form

ATX

DirectX

12 Ultimate

OpenGL

4.6

Recommended PSU

550W

Power Connectors

8 pin*1

Output

DisplayPort 1.4a *2
HDMI 2.1 *2

SLI Support

N/A

Accessories

Quick guide
