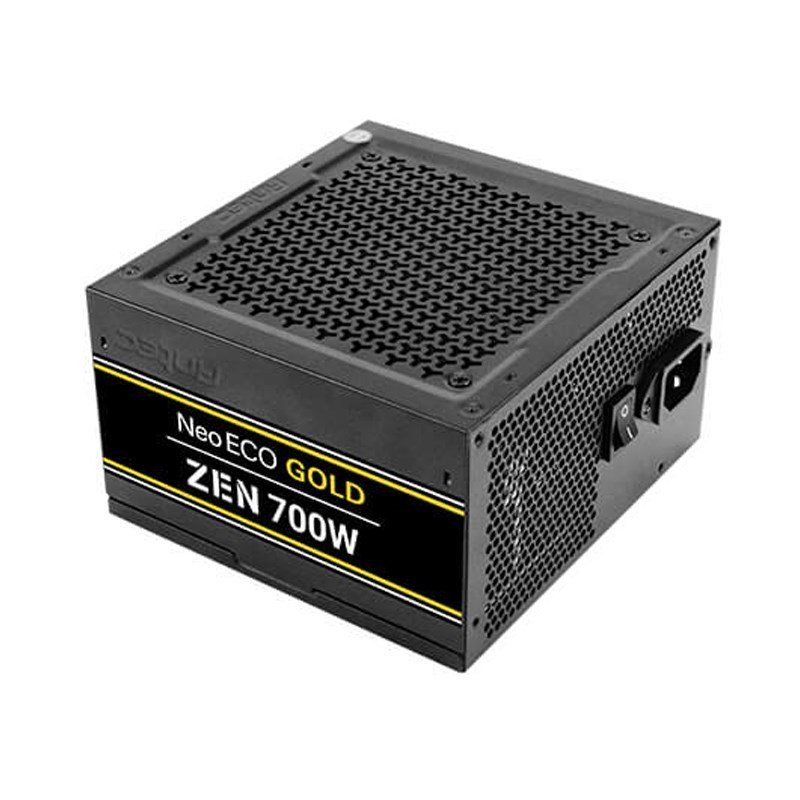

Nguồn Antec Neo Eco Gold NE700G ZEN 700W
Thông tin sản phẩm
Model | Zen NE700G |
Loại | ATX 12V 2.4 |
Mô Đun |
|
Kích thước | 140 (L) x 150 (W) x 86 (H) |
Bảo hành | 5 năm |
Điện áp đầu vào | 100-240 VAC |
Đầu vào hiện tại | 10A-5A |
Dải tần số đầu vào | 50Hz-60Hz |
Pfc | Kích hoạt PFC |
Tín hiệu tốt | 100-500ms |
Hiệu quả | Lên đến 92% |
Bảo vệ | OCP / OVP / UVP / SCP / OPP / NLO |
Công suất đầu ra | 700W |
Nhiệt độ hoạt động | 0 ~ 40 ° C |
Điều tiết | cTUVus / TUV / CB / RCM / CE / CCC / BSMI / FCc / KC |
Quạt | Quạt làm mát 120mm |
Giấy chứng nhận | 80 Plus Gold |
Đầu nối | Pin 1 x MB 24 (20 + 4) 2 x 8 (4 + 4) Pin EPS 12V Pin 4 x 8 (6 + 2) PCI-E 6 x SATA 2 x Molex |
Trọng lượng tịnh | 1,79 Kgs |
Tổng trọng lượng | 2,17 Kgs |
CPU | 0-761345-11686-2 NE700G ZEN AU ZEN NE700G 0-761345-11687-9 0-761345-11688-6 NE700G ZEN EC 0-761345-11689-3 NE700G ZEN GB 0-761345-11690-9 NE700G ZEN JP |
Neo ECO GOLD ZEN
700W
Efficient & Affordable
The new NeoECO Gold ZEN series features high performance with an 80 PLUS Gold rating, achieving up to 92% efficiency and gives you savings unheard of from other power supplies.Featuring a 120mm whisper-quiet high-quality fan and CircuitShield™ Industrial Grade Protection-all backed up by our 5-year Antec Quality Warranty, NeoECO Gold ZEN series offers a highly efficient, affordable power solution.
Antec 5-Year Warranty
We stand by the quality and safety of the NeoECO Gold ZEN Supplies, offering a 5-year parts and labor warranty and unlimited access to our incomparable technical support and customer service.
Japanese Heavy-Duty Caps
Japanese capacitors ensure the tightest DC stability and regulation, for reliability that you and your system can count on.
LC + DC to DC Design
A server-class Half-Bridge LLC design with a synchronous rectification based on a DC-DC topology.
120 mm
Silent Fan
Features a Thermal Manager, an advanced low voltage fan control for optimal heat & noise management and will allow your PSU to stay at an optimal temperature.
99% +12V Output
Engineered with high-quality capacitors and low-noise transformers, the NeoECO Gold ZEN series provide clean, stable power with maximum CPU & GPU support
Cable Qty & Length
