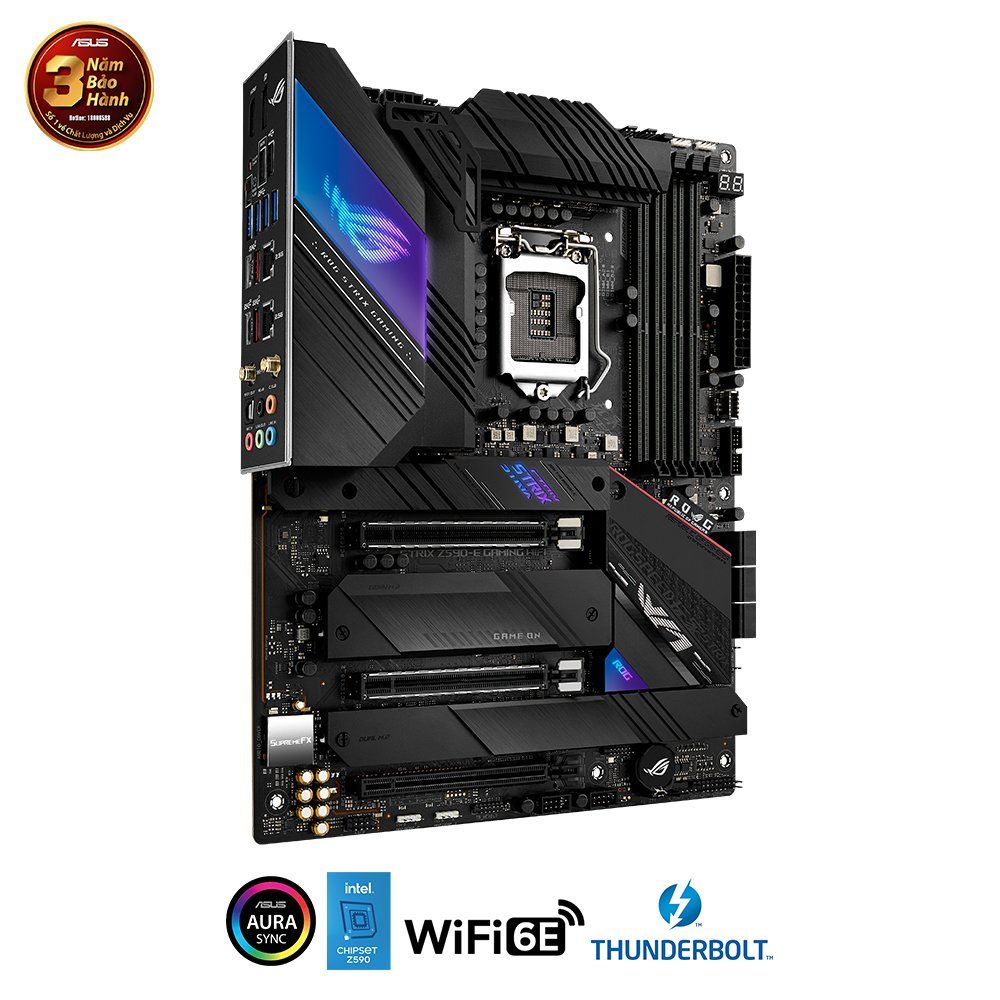

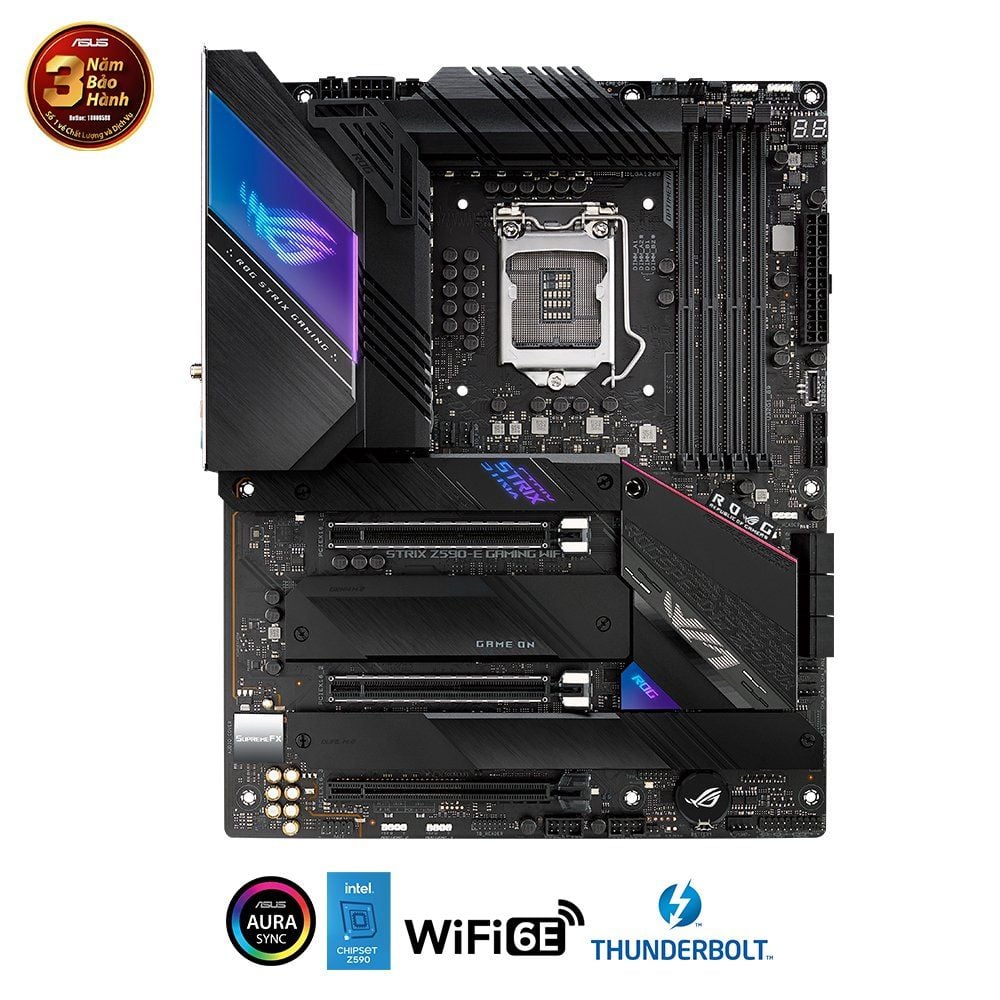

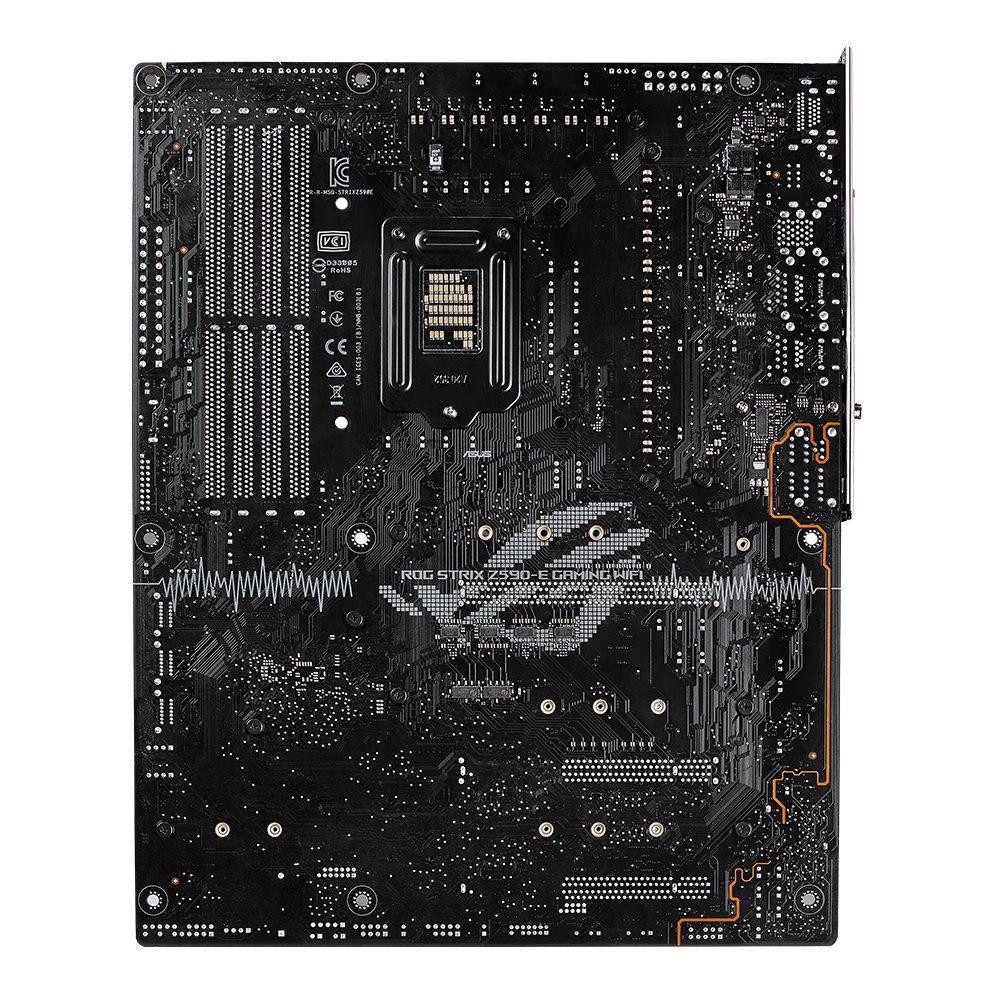

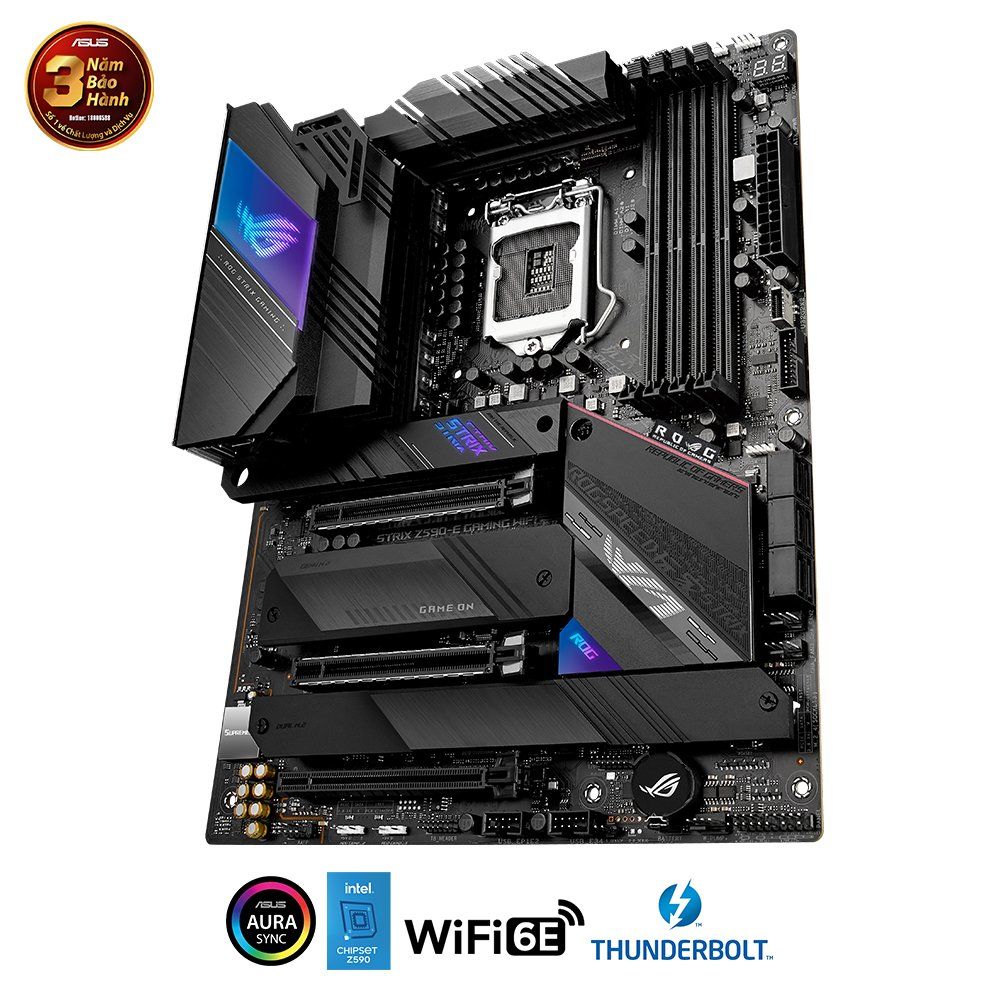

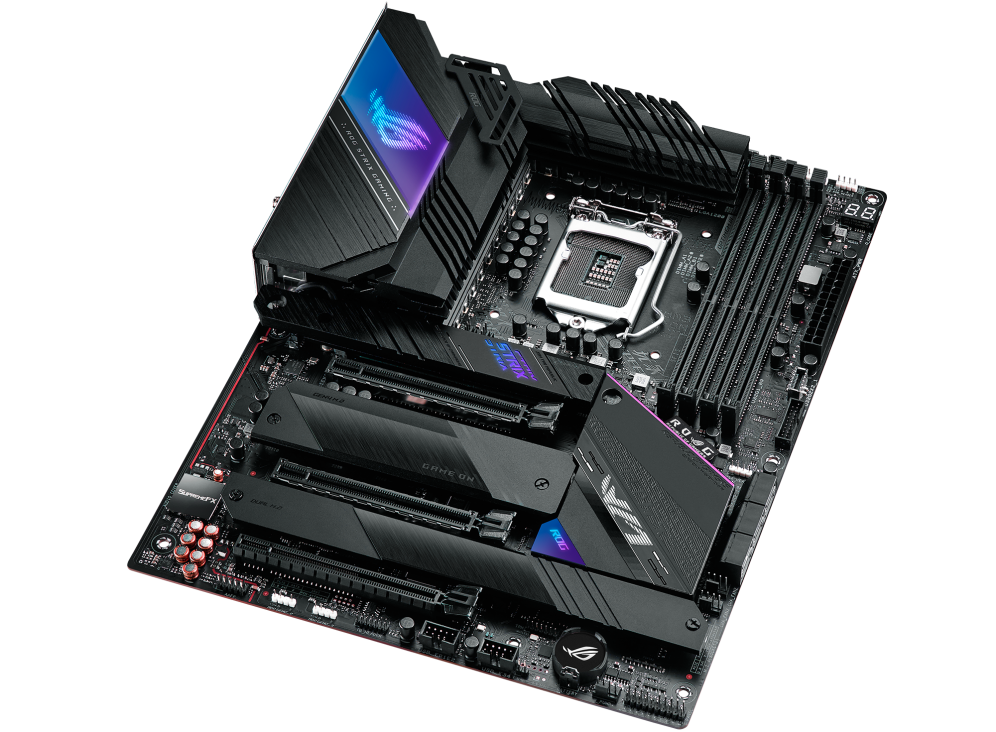

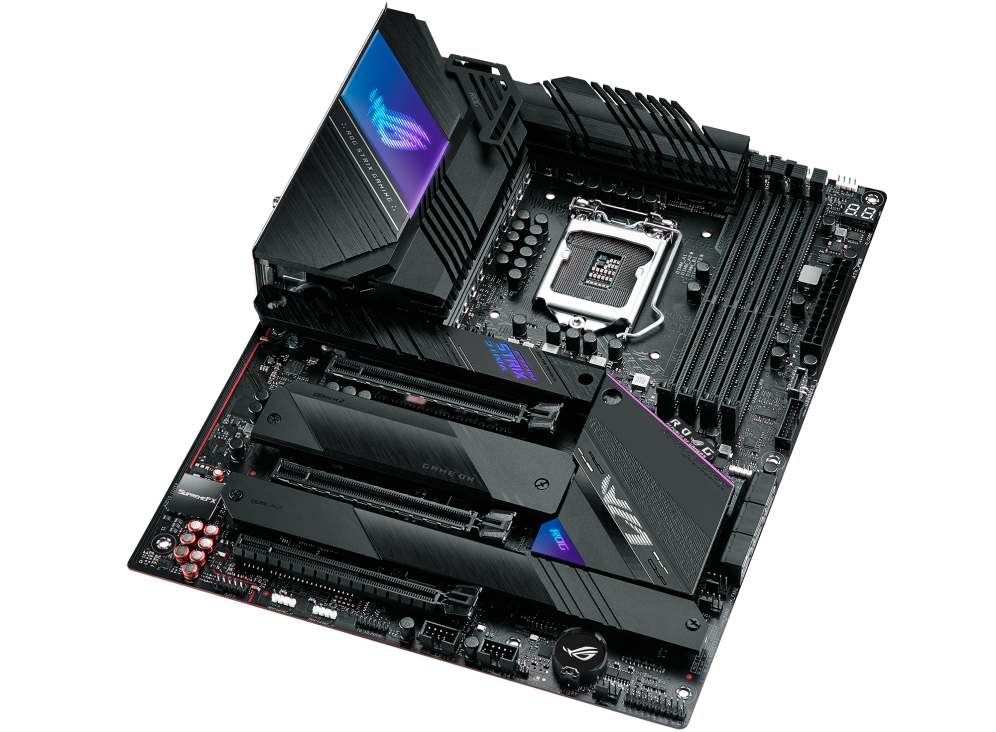

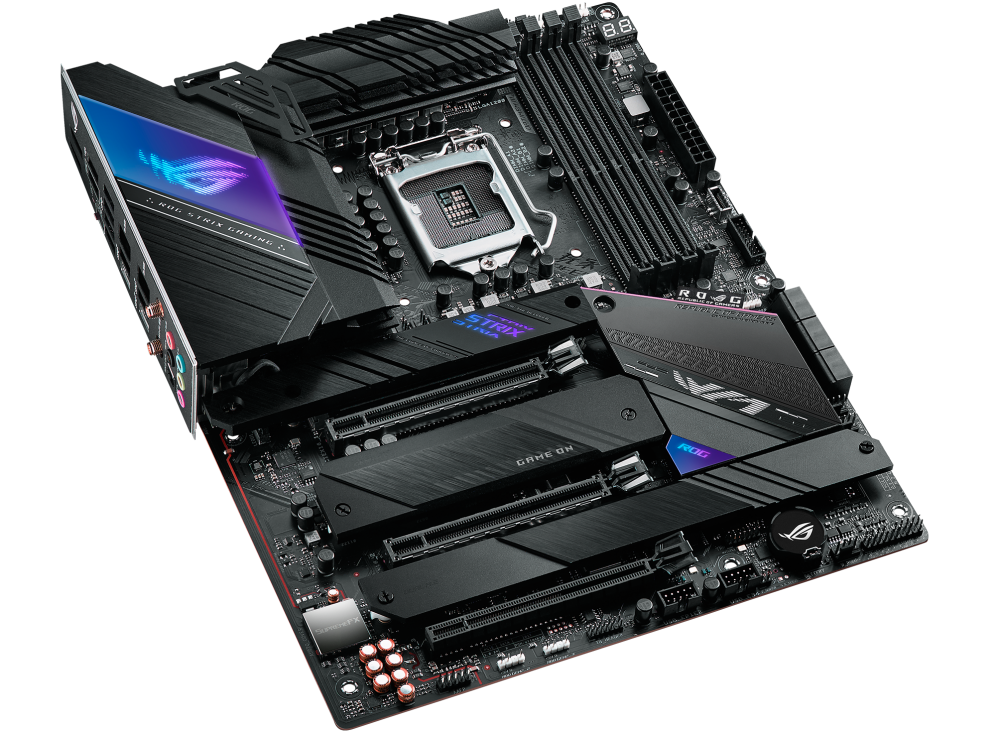

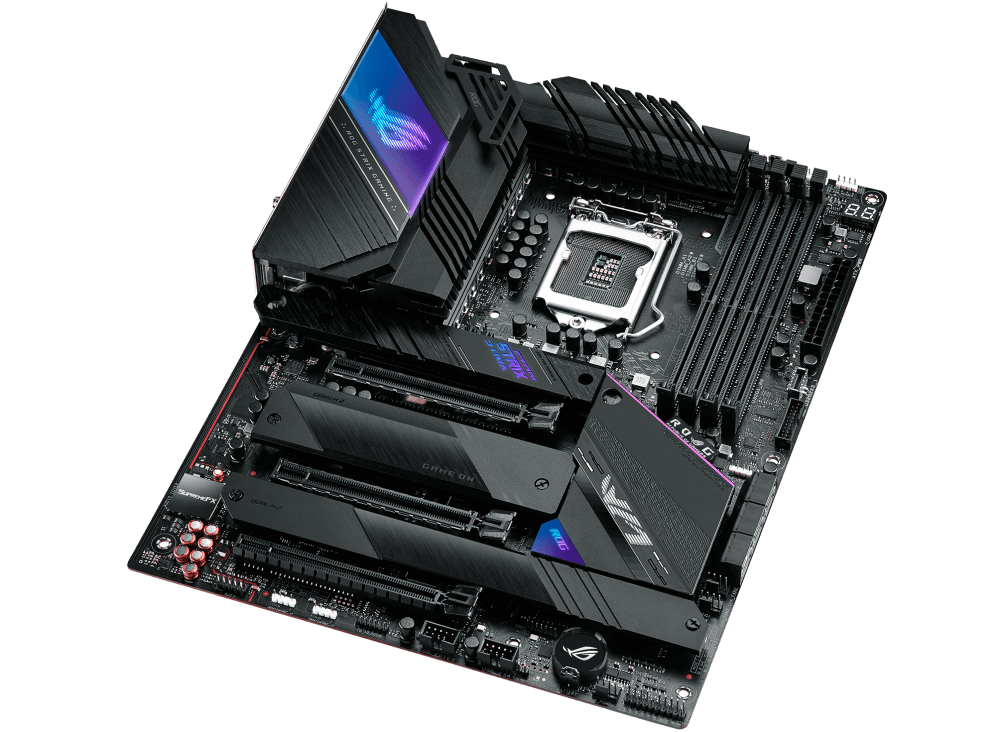

ASUS ROG STRIX Z590 E GAMING WIFI

• Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

• Supports Intel® 14 nm CPU

• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

  * Refer to www.asus.com for CPU support list.

  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Memory Channels:4 x DIMM (Dual Channel Memory Architecture)
• Max Memory Size:128GB

• DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

  Dual Channel Memory Architecture

  Supports Intel® Extreme Memory Profile (XMP)

  OptiMem III

* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

* 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

• 1 x DisplayPort 1.4
• 1 x HDMI 2.0

** Only Intel® 11th Core™ processors support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others will only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates

*** Only Intel® 11th Core™ processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.

Intel® 11th &10th Gen Processors

2 x PCIe 4.0/3.0 x16 slot(s)

• Intel® 11th processors support PCIe 4.0 x16 or x8/x8 or x8/x4 mode(s)
• Intel®10th processors support PCIe 3.0 x16 or x8/x8 or x8/x4 mode(s)

Intel® Z590 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)

Support PCIe bandwidth bifurcation for RAID on CPU function.

PCIe16_3 shares bandwidth with SATA_56. When PCIe16_ 3 is populated SATA_56 will be disabled. When PCIe16_3 run at default x2 mode, SATA_56 is enabled.

 Supports NVIDIA 2-Way SLI® Technology

Storage

Supports 4 x M.2 slots and 6 x SATA 6Gb/s ports

Intel®11th &10th Gen Processors*

M.2_1 slot (Key M), type 2242/2260/2280/22110

• Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

M.2_2 slot (Key M), type 2242/2260/2280/22110

• Intel® 11th processors support PCIe 4.0 x4 mode
• Intel® 10th processors support PCIe 3.0 x4 mode

Intel® Z590 Chipset

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*

6 x SATA 6Gb/s ports

Raid function in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.

*When M.2_4 is operating in SATA device, SATA6G_2 will be disabled.

USB

Rear USB:Total 10 ports

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)

3 x USB 3.2 Gen 2 port (2 x Type-A, 1 x USB Type-C® )

4 x USB 3.2 Gen 1 port (4 x Type-A)

Front USB:Total 7 ports

1 x USB 3.2 Gen 2x2 connector(s) (suppport(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Audio

Audio Features

• SupremeFX Shielding Technology
• ALC4080 + Savitech SV3H712 AMP
• Gold-plated audio jacks
• Rear optical S/PDIF out port
• Premium Japanese audio capacitors
• Audio cover

Back Panel I/O Ports

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x USB Type-C® )
• 4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
• 2 x USB 2.0 port(s) (2 x Type-A)

• 1 x HDMI™ port
• 1 x DisplayPort
• 1 x Intel® Wi-Fi 6E
• 2 x Intel® I225-V 2.5Gb Ethernet
• 5 x Gold-plated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

Intrernal I/O Connectors

• 1 x Thunderbolt 4 (onboard)

Fan and Cooling related

• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin CPU OPT Fan header(s)
• 1 x 4-pin AIO Pump header(s)
• 3 x 4-pin Chassis Fan header(s)
• 1 x VRM heatsink Fan header
• 1 x W_PUMP+ header

Power related

• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector

Storage related

• 4 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports

USB

• 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®)
• 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

• 3 x AURA Addressable Gen 2 header(s)
• 1 x AURA RGB header(s)
• 1 x CPU Over Voltage jumper
• 1 x Front Panel Audio header (AAFP)
• 1 x Q Code
• 1 x SPI TPM header (14-1pin)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header
• 1 x Thunderbolt header

Software Features

ROG Exclusive Software

• RAMCache III
• ROG CPU-Z
• GameFirst VI
• Sonic Studio III + Sonic Studio Virtual Mixer
• Sonic Radar III
• DTS® Sound Unbound
• Overwolf
• Anti-virus software

ASUS Exclusive Software

Armoury Crate

• AIDA64 Extreme (60 days free trial)
• AURA Creator
• AURA Sync
• Two-Way AI Noise Cancelation

AI Suite 3

- 5-Way Optimization with AI Overclocking

TPU

EPU

DIGI+ VRM

Fan Xpert 4

Turbo app

- EZ update

DAEMON Tools

MyAsus

WinRAR

UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode

FlexKey

MemTest86

Accessories

Cables

• 4 x SATA 6Gb/s cable
• Additional Cooling Kit
• 1 x Assistant fan (40mm)
• 1 x Screw package for cooling kit

Miscellaneous

• 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
• 1 x M.2 Q-Latch package
• 2 x M.2 Rubber Packages
• 1 x ROG key chain
• 1 x cable tie
• 1 x ROG Graphics card holder
• 1 x ROG STRIX stickers
• 1 x ROG STRIX thank you card

Installation Media

• 1 x Support DVD

Documentation

• 1 x User manual

ATX

30.5cm x 24.4cm
