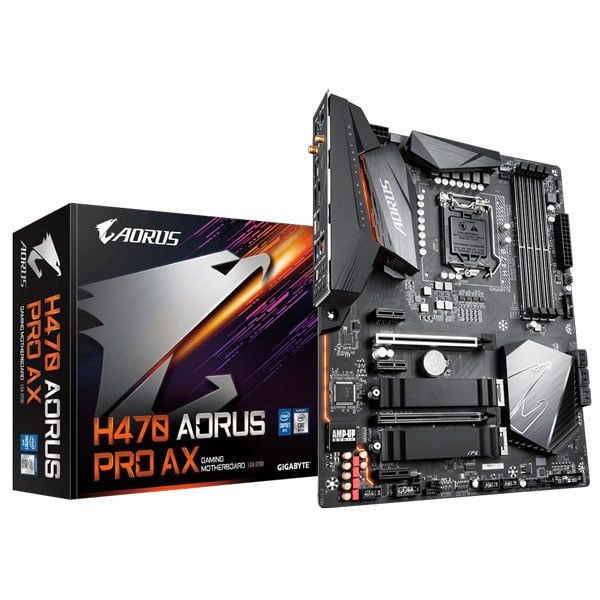

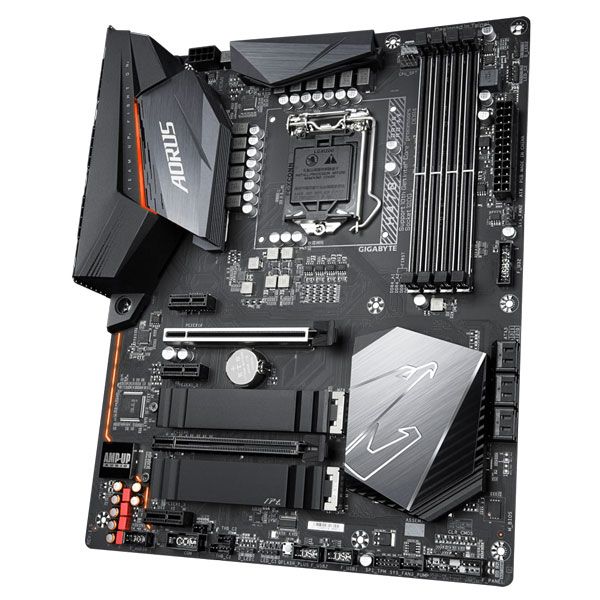

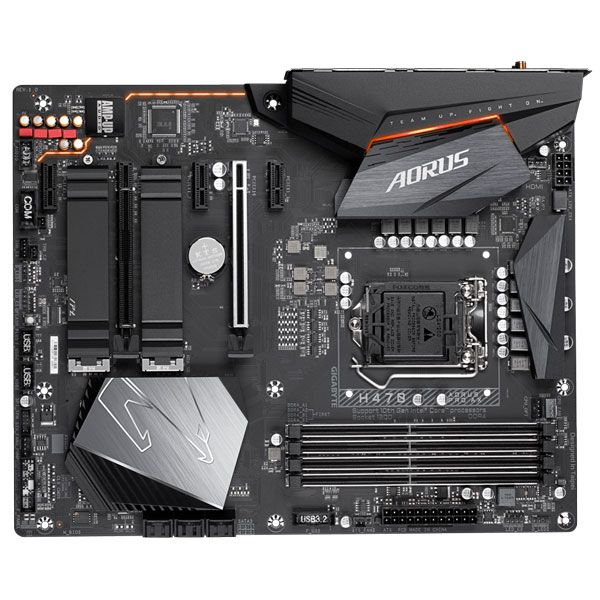

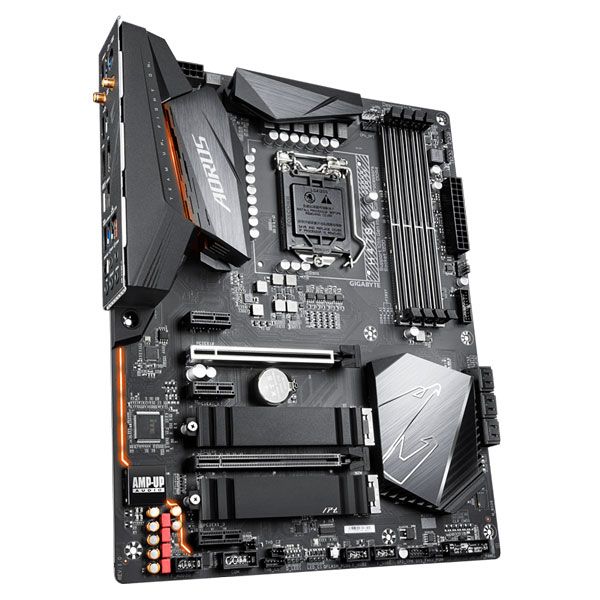

Gigabyte H470 AORUS PRO AX (Chipset Intel H470/ Socket LGA1200/ VGA onboard)
Mã sản phẩm: BH 36T
4,050,000₫
4,700,000₫
(-14%)
ĐẶC ĐIỂM NỔI BẬT
THÔNG SỐ KỸ THUẬT
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | Gigabyte |
| Model | H470-AORUS PRO AX |
| Socket | LGA1200 |
| Hỗ trợ CPU | Intel® Socket 1200 for 10th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Bộ vi xử lý |
| Chipset | Intel H470 |
| Hỗ trợ RAM | x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Cạc đồ họa | VGA onboard |
| Âm thanh | Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Cạc mạng | Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Intel® Wi-Fi 6 AX201 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.1 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Khe cắm trong | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. |

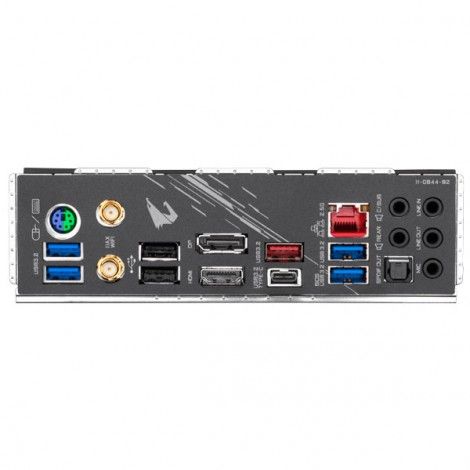

| Cổng giao tiếp ngoài | 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x DisplayPort 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
| Kích thước | ATX |
| Phụ kiện kèm theo | Sách, đĩa, cáp SATA, … |
