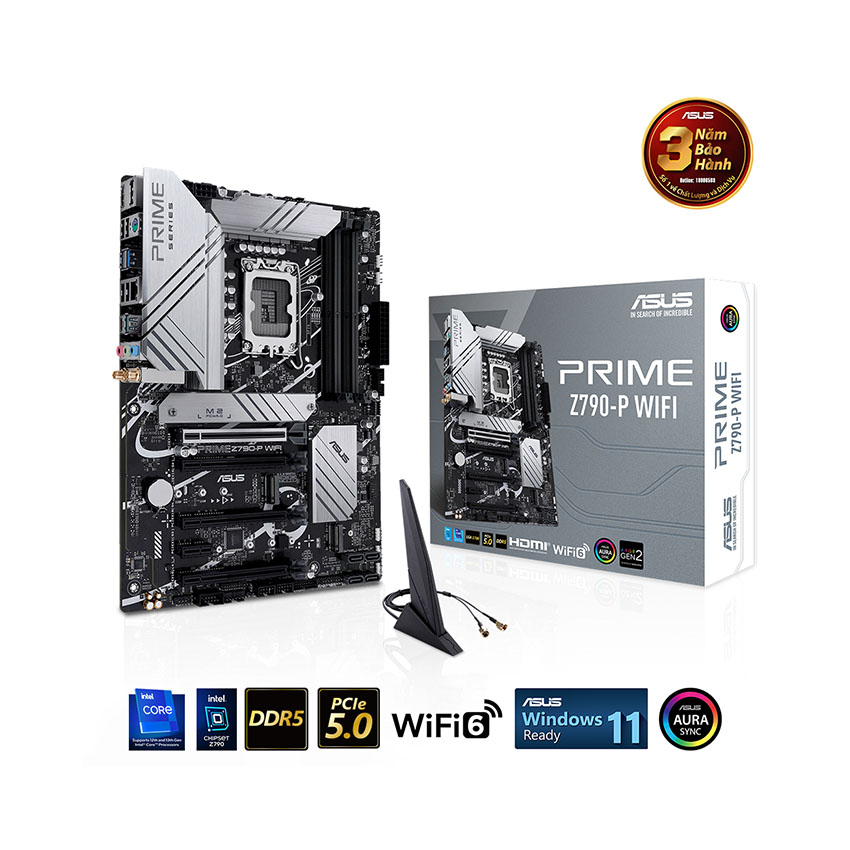

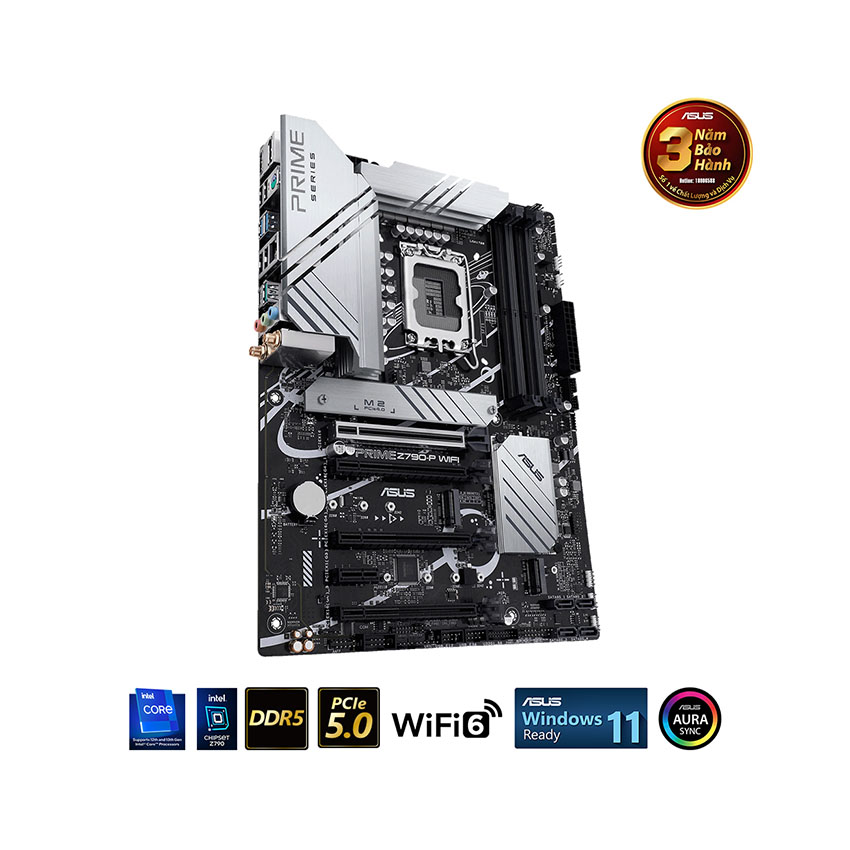

Mainboard ASUS PRIME Z790-P WIFI-CSM DDR5
6,890,000₫
Sản phẩm | Bo mạch chủ |
Tên Hãng | Asus |
Model | PRIME Z790-P WIFI-CSM |
CPU hỗ trợ | Intel |
Chipset | Intel Z790 Chipset |
RAM hỗ trợ | 4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC) |
5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory | |
Khe cắm mở rộng | Intel® 13th & 12th Gen Processors* |
1 x PCIe 5.0 x16 slot | |
Intel® Z790 Chipset | |
3 x PCIe 4.0 x16 slots (support x4 mode) | |
1 x PCIe 3.0 x1 slot | |
Ổ cứng hỗ trợ | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
Intel® 13th & 12th Gen Processors | |
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
Intel® Z790 Chipset | |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) | |
4 x SATA 6Gb/s ports | |
Cổng kết nối (Internal | Fan and Cooling related |
1 x 4-pin CPU Fan header | |
1 x 4-pin CPU OPT Fan header | |
1 x 4-pin AIO Pump header | |
3 x 4-pin Chassis Fan headers | |
Power related | |
1 x 24-pin Main Power connector | |
1 x 8-pin +12V Power connector | |
1 x 4-pin +12V Power connector | |
Storage related | |
3 x M.2 slots (Key M) | |
4 x SATA 6Gb/s ports | |
USB | |
1 x USB 3.2 Gen 2 connector (supports USB Type-C®) | |
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
Miscellaneous | |
3 x Addressable Gen 2 headers | |
2 x Aura RGB headers | |
1 x Clear CMOS header | |
1 x COM Port header | |
1 x Front Panel Audio header (AAFP) | |
1 x S/PDIF Out header | |
1 x SPI TPM header (14-1pin) | |
1 x 20-5pin System Panel header | |
1 x Thunderbolt™ (USB4®) Header | |
Cổng kết nối (Back Panel) | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) |
1 x USB 3.2 Gen 2 port (1 x Type-A) | |
2 x USB 3.2 Gen 1 ports (2 x Type-A) | |
4 x USB 2.0 ports (4 x Type-A) | |
1 x DisplayPort | |
1 x HDMI® port | |
1 x Wi-Fi Module | |
1 x Realtek 2.5Gb Ethernet port | |
3 x Audio jacks | |
1 x PS/2 Keyboard/Mouse combo port | |
LAN / Wireless | Wi-Fi 6 |
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) | |
Supports 2.4/5GHz frequency band | |
Bluetooth® v5.2 | |
1 x Realtek 2.5Gb Ethernet | |
Kích cỡ | ATX Form Factor |
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
