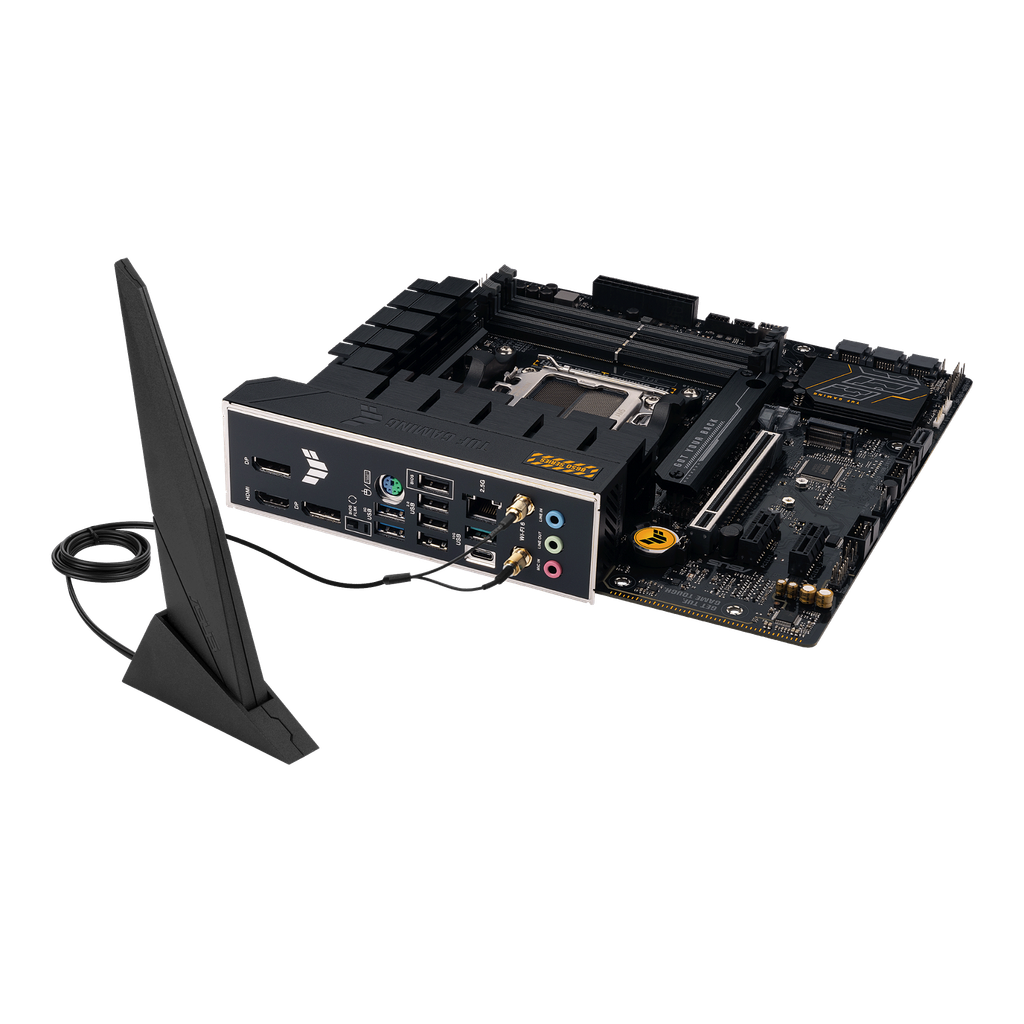

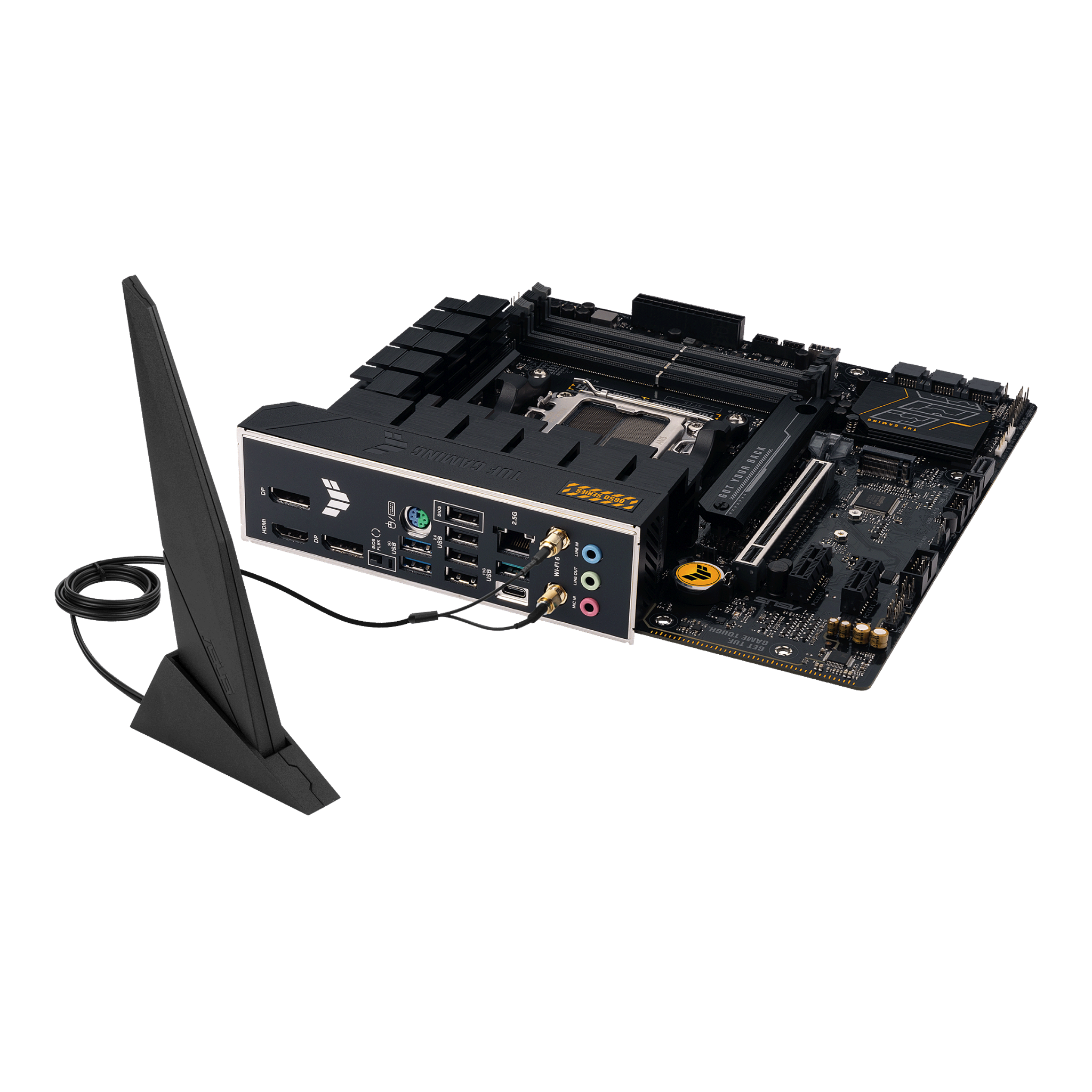

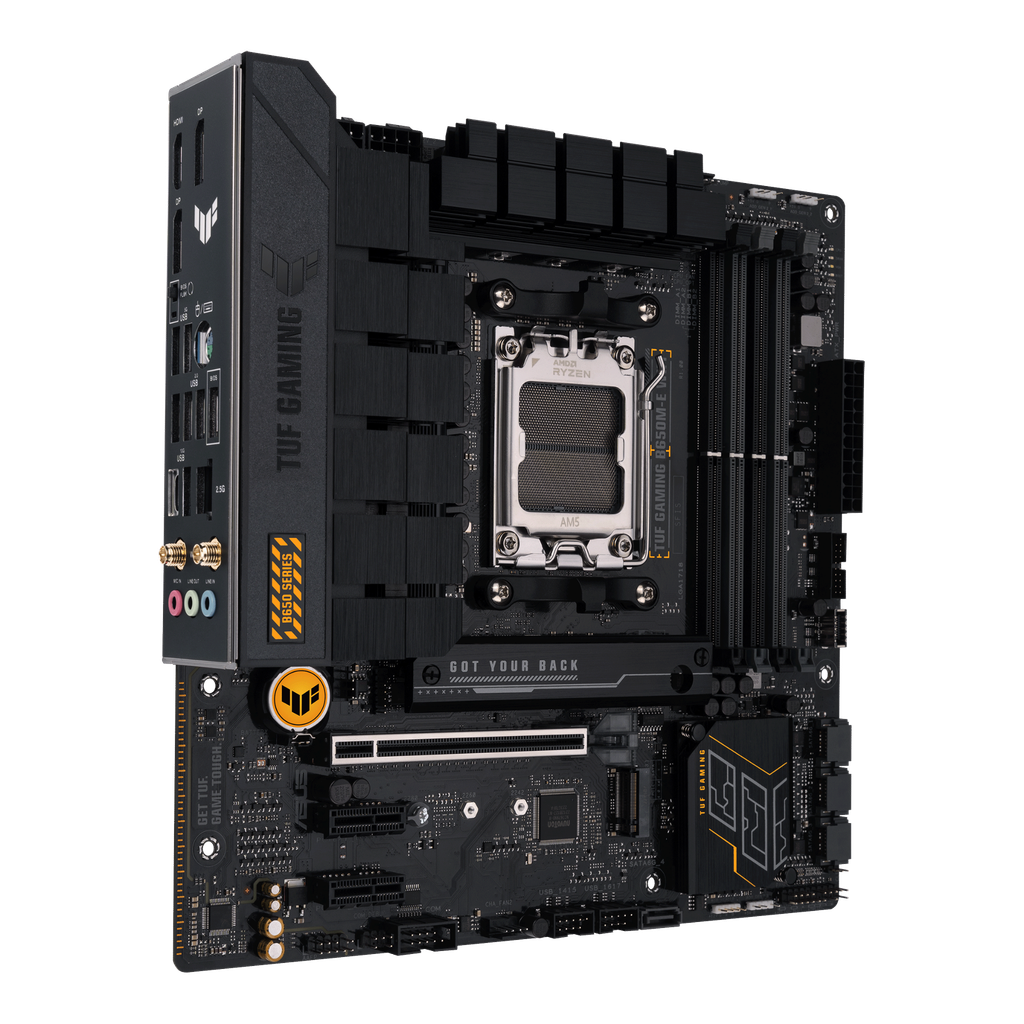

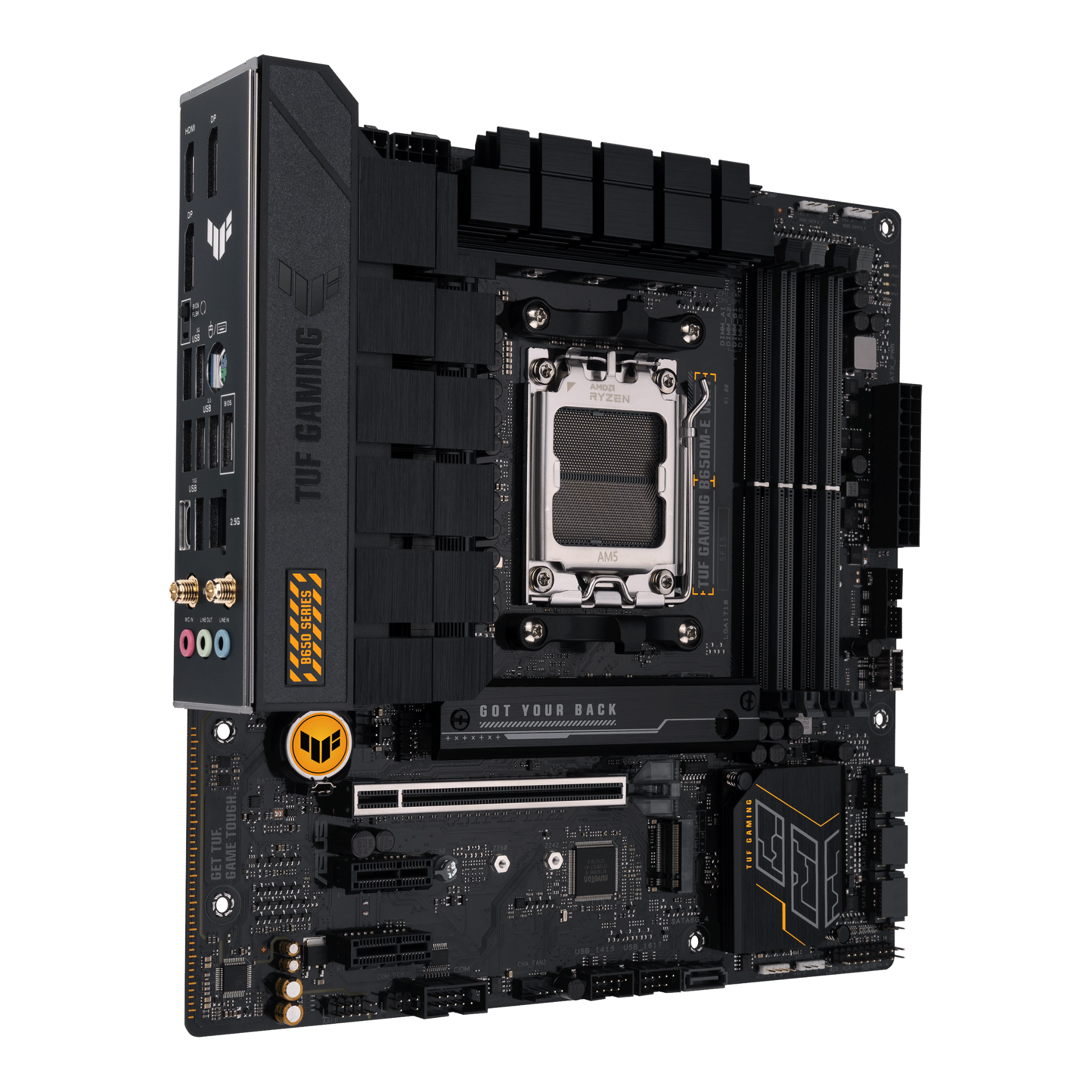

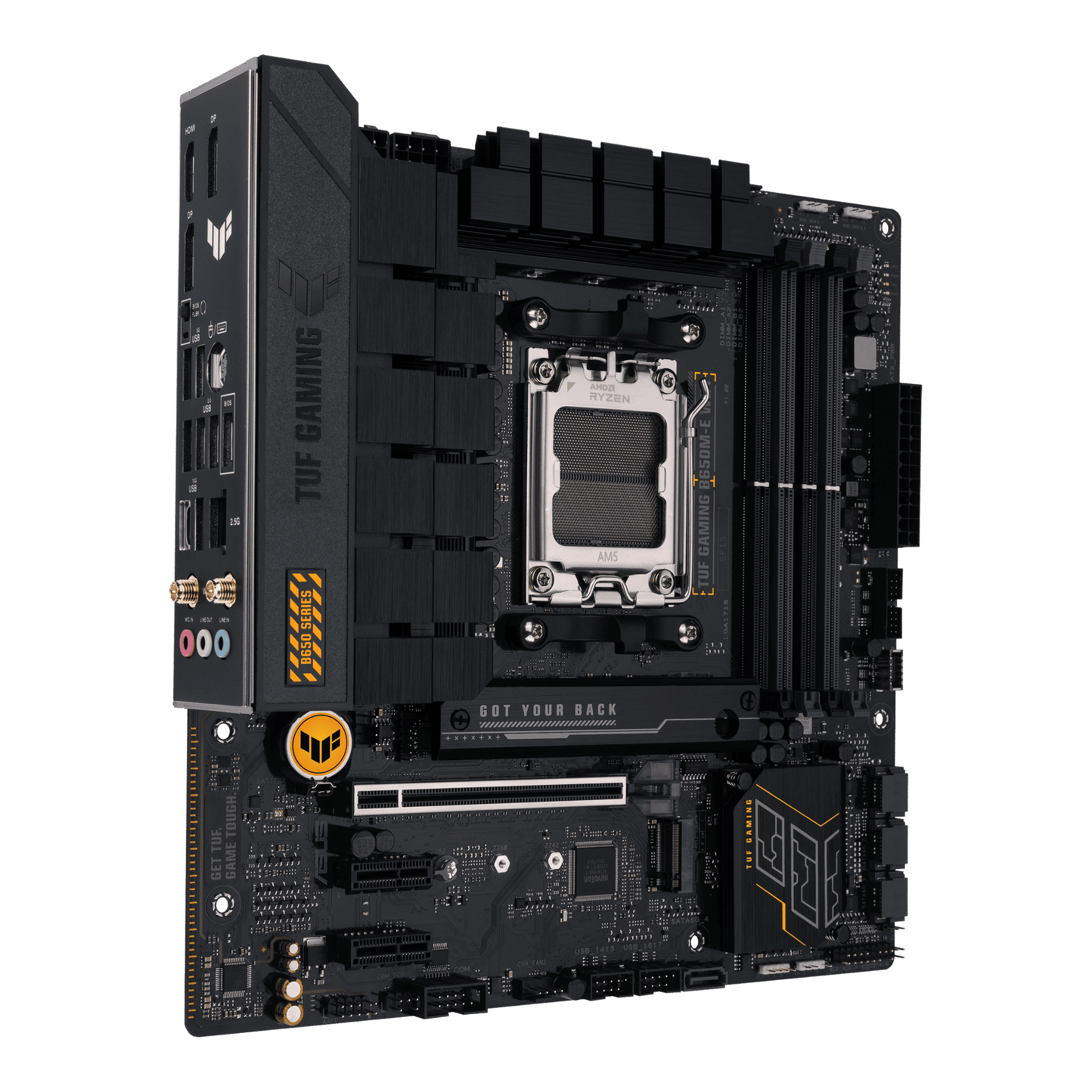

Mainboard ASUS TUF Gaming B650M-E WiFi DDR5

TUF GAMING B650M-E WIFI

AMD Socket AM5 for AMD Ryzen™ 7000 Series/8000 Series Desktop Processors* * Refer to www.asus.com for CPU support list.

4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II

2 x DisplayPort** 1 x HDMI™ port*** * Graphics specifications may vary between CPU types. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.

AMD Ryzen™ 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 2 x PCIe 4.0 x1 slots

2 x M.2 slots, 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors: M.2_1 slot (PCIe 5.0 x4 mode), M.2_2 slot (PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors: M.2_1 slot (PCIe 4.0 x4 mode), M.2_2 slot (PCIe 4.0 x4/x2 mode)** AMD B650 Chipset: 4 x SATA 6Gb/s ports

1 x Realtek 2.5Gb Ethernet TUF LANGuard

Wi-Fi 6, 1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth® v5.2* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Rear USB: 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®), 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A) Front USB: 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback

2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®), 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 2 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button, 1 x PS/2 Keyboard/Mouse combo port

Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 2 x 4-pin Chassis Fan headers Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector Storage related: 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function

ASUS TUF PROTECTION: DIGI+ VRM (Digital power design with DrMOS), ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O ASUS Q-Design: M.2 Q-Latch, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot ASUS Thermal Solution: M.2 heatsink, VRM heatsink design ASUS EZ DIY: BIOS FlashBack™ button, BIOS FlashBack™ LED, ProCool, Pre-mounted I/O shield, SafeSlot Core+, SafeDIMM Aura Sync: Aura RGB header, Addressable Gen 2 headers

ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving, Two-Way AI Noise Cancelation), AI Suite 3 (TurboV EVO, DIGI+ VRM, PC Cleaner), TUF GAMING CPU-Z, DTS Audio Processing, MyASUS, Norton 360 for Gamers (60 Days Free Trial), WinRAR UEFI BIOS: ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode)

256 Mb Flash ROM, UEFI AMI BIOS

Cables: 2 x SATA 6Gb/s cables Miscellaneous: 1 x ASUS Wi-Fi moving antennas, 1 x TUF Gaming sticker, 1 x M.2 Rubber Package, 1 x Screw package for M.2 SSD Documentation: 1 x TUF Certification card, 1 x User guide

Windows® 11, Windows® 10 64-bit

micro-ATX Form Factor, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
