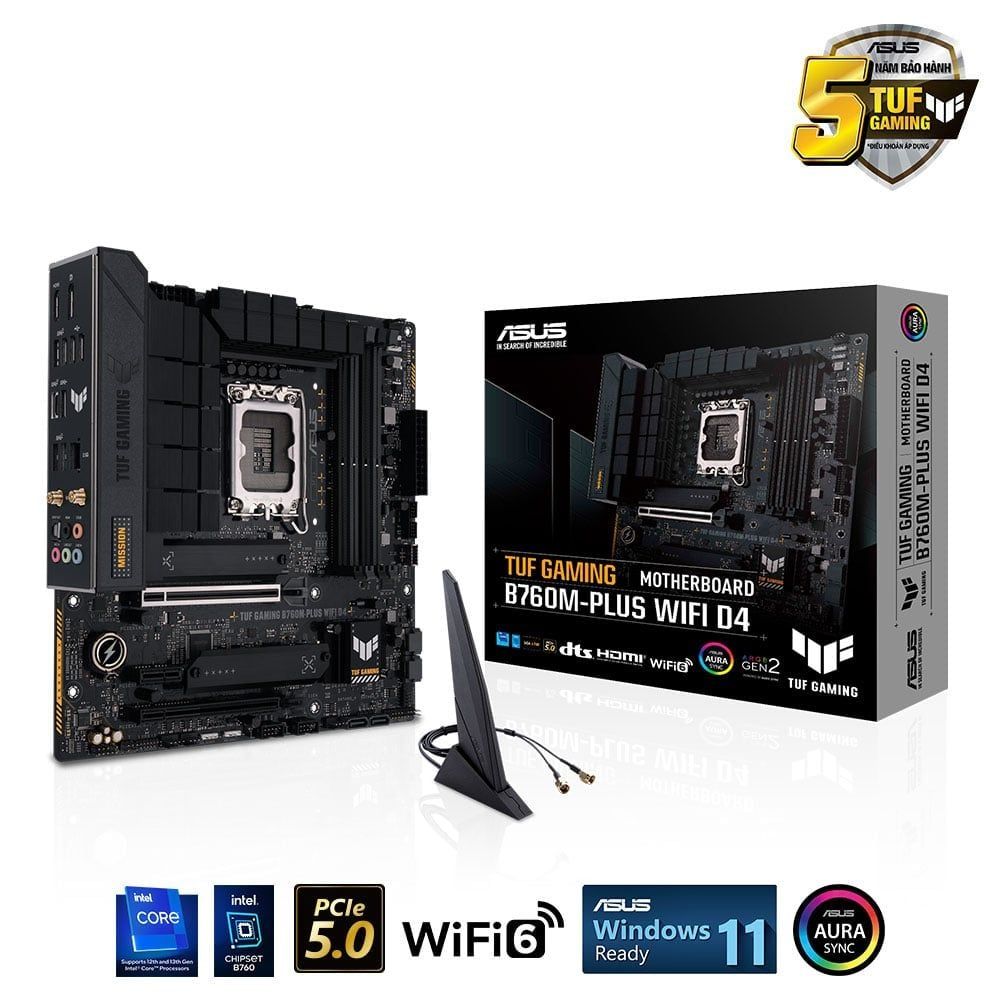

Mainboard Asus TUF Gaming B760M Plus Wifi DDR4
3,740,000₫
| Socket | LGA1700 |
| Hỗ trợ CPU | Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors |
| Chipset | Intel B760 |
| Khe cắm RAM | 4 |
| Hỗ trợ RAM | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/ 4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/ 3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memor |
| Card đồ họa | 1 x DisplayPort 1 x HDMI® port Graphics specifications may vary between CPU types. Please refer to www.Intel.Com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1 |
| Âm thanh | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Kết nối không dây | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.2 |
| Kết nối có dây | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Khe cắm trong | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports IntelRapid Storage Technology supports SATA RAID 0/1/5/10 |
| Khe cắm mở rộng | Intel® 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot |
| Cổng giao tiếp ngoài | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Kích thước | MATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
