| - Support Intel Core Ultra Processors (Series 2) , LGA1851
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
|
| |
| - 4 x DIMM slots, max. 256GB, DDR5
- Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
- Dual Channel Memory Architecture
- DIMM Fit
- Supports Intel® Extreme Memory Profile (XMP) memory module
- ASUS Enhanced Memory Profile III(AEMPIII)
|
| - 1 x DisplayPort
- 1 x HDMI port
- 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output
|
| - Intel Core Ultra Processors(Series 2)
- 1 x PCIe 5.0 x16 slot
- Intel B860 Chipset
- 1 x PCIe 4.0 x4 slot
|
| - Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
- Intel Core Ultra Processors(Series 2)
- M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
- Intel B860 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
|
| - 1 x Realtek 2.5Gb Ethernet
- TUF LANGuard
|
| - Rear USB (Total 8 ports)
- 1 x USB 20Gbps port (1 x USB Type-C)
- 2 x USB 10Gbps port (2 x Type-A)
- 4 x USB 5Gbps ports (4 x Type-A)
- 1 x USB 2.0 ports (1 x Type-A)
- Front USB (Total 8 ports)
- 1 x USB 10Gbps connector (supports USB Type-C)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 1 x USB 2.0 headers support 2 additional USB 2.0 ports
|
| - Fan and Cooling Related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 3 x 4-pin Chassis Fan headers
- Power Related
- 1 x 24-pin Main Power connector
- 2 x 8-pin +12V Power connectors
- Storage Related
- 3 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 10Gbps connector (supports USB Type-C)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 1 x USB 2.0 header supports 2 additional USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Clear CMOS header
- 1 x Chassis Intrusion header
- 1 x Front panel audio header (F_AUDIO)
- 1 x 10-1 pin Front System Panel header
- 1 x Thunderbolt (USB4) header
|

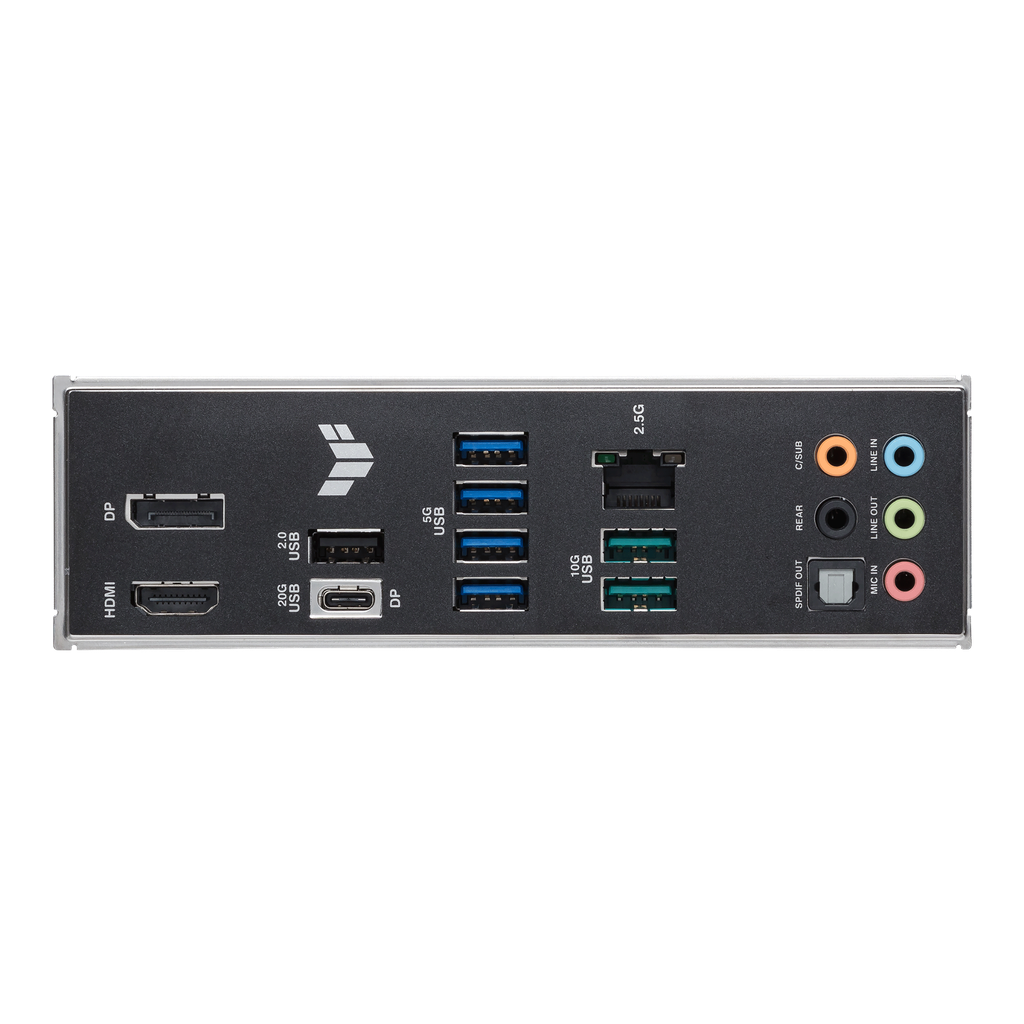

- Cổng kết nối (Back Panel)
| - 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)
- 2 x USB 10Gbps port (2 x Type-A)
- 4 x USB 5Gbps ports (4 x Type-A)
- 1 x USB 2.0 port (1 x Type-A)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Realtek 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x Optical S/PDIF out port
|
| - Realtek 7.1 Surround Sound High Definition Audio CODEC
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- Audio Features
- - Audio Shielding
- - Rear optical S/PDIF out port
- - Premium audio capacitors
- - Dedicated audio PCB layers
|
| - mATX Form Factor
- 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
|
