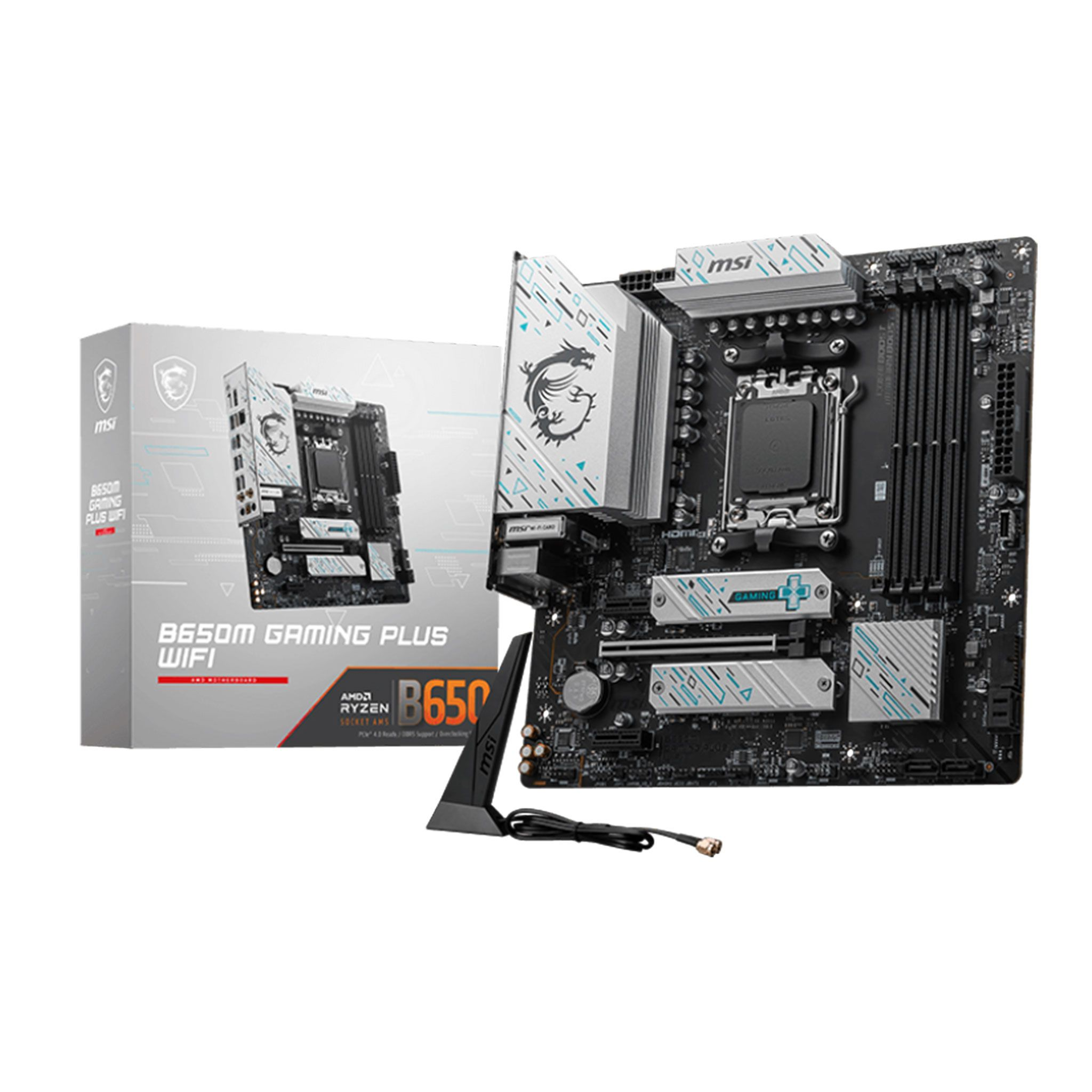

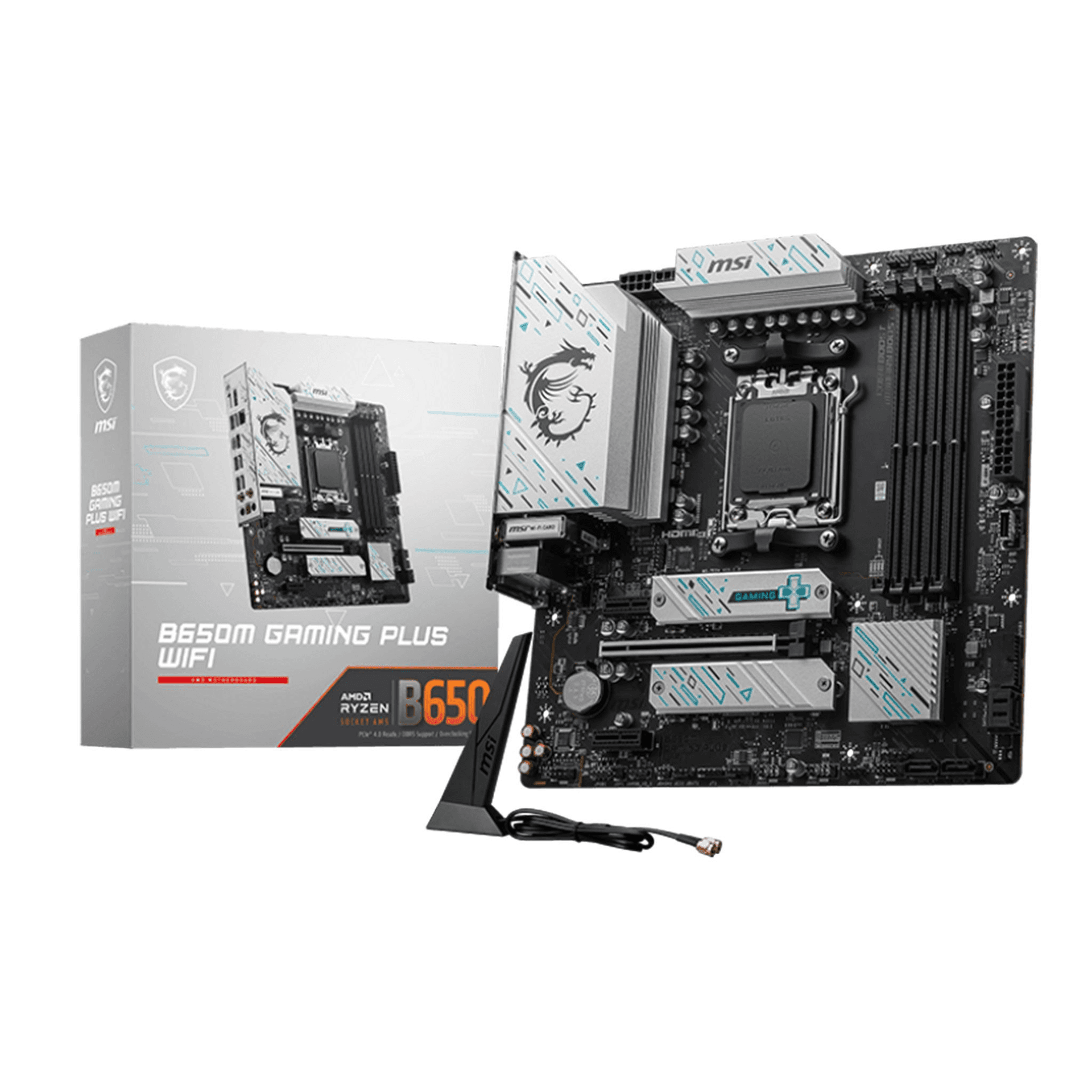

Mainboard MSI B650M Gaming Plus WiFi
0₫
Brand: MSI
CPU Support: AMD Ryzen 7000 and 8000 Series processors
Chipset: B650
RAM Support:
- 4 DDR5 UDIMM slots
- Maximum memory capacity: 256GB
- Supports DDR5 memory with speeds up to 7200+ MHz (overclocked)
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports AMD EXPO technology
Expansion Slots:
- 1x PCI-E x16 slot (supports x16 for Ryzen 7000, x8 for Ryzen 7 8700G/5 8600G, and x4 for Ryzen 5 8500G)
- 2x PCI-E x1 slots
Storage Support:
- 2x M.2 slots (both support PCIe 4.0 x4, 2280/2260 devices)
- 4x SATA 6G ports
Internal Connectors:
- Various headers for power, fans, USB, RGB LEDs, and TPM module
Back Panel Connectors:
- DisplayPort
- 2.5G LAN
- USB ports (including Type-A, Type-C, Gen 2, and Gen 1)
- Wi-Fi / Bluetooth antenna connectors
- Flash BIOS button
- HDMI
- Audio connectors
Networking:
- 2.5G LAN
- AMD Wi-Fi 6E with Bluetooth 5.3
Form Factor: mATX (micro ATX)
Dimensions: 243.84mm x 243.84mm
