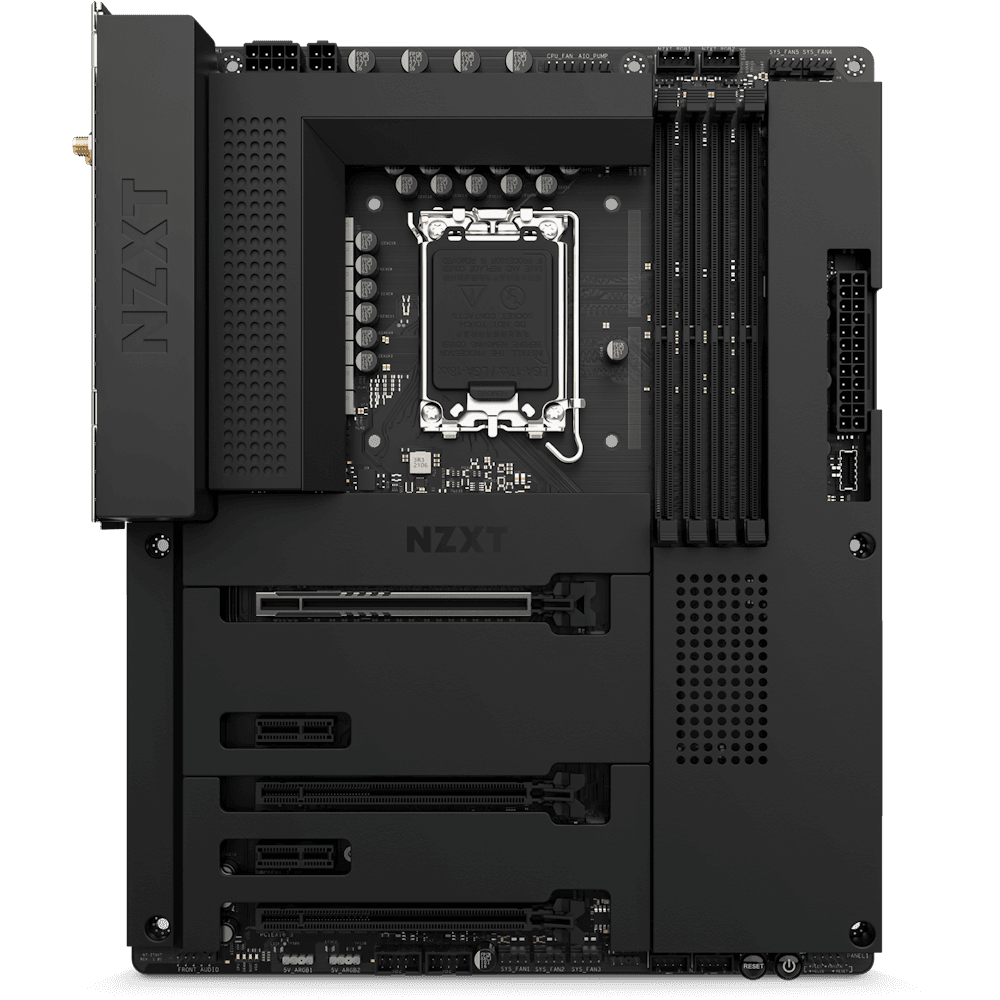

Mainboard NZXT N7 Z790 Black | Intel Z790, Socket 1700, ATX, 4 khe DDR5
6,833,000₫
| Thông số | Chi tiết |
| CPU và SOCKET | Intel® Socket LGA 1700 for Intel® 13th and 12th Generation Processors: Intel® Core™ Processors. Refer to CPU support list. Intel® Hybrid Technology: Có Turbo Boost Max 3.0 Technology: Có Intel® Thermal Velocity Boost (TVB): Có Intel® Adaptive Boost Technology (ABT): Có |
| CHIPSET | Intel® Z790 |
| RAM | DIMM Slots: 4 xDDR5 Max Memory Support: 128GB, DDR5 Memory Architecture: Dual-Channel OC Frequency: 6000+(O.C.). Refer to memory QVL. Intel® Extreme Memory Profile (XMP) 3.0: Supported |
| Khe mở rộng | PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode: 1 (Supports NVMe SSD as boot disks) PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×4 mode: 2 (Supports NVMe SSD as boot disks) PCIe 3.0 ×1 slots (PCIEX1_1 and PCIEX1_2)*: 2 (Supports NVMe SSD as boot disks) M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel® CNVio/CNVio2: 1 |
| Bộ nhớ | M.2_1, Type 2242/2260/2280 (PCIe 4.0 ×4 mode): 1 M.2_2, Type 2242/2260/2280/22110 (PCIe 4.0 ×4 mode): 1 |
| Kết nối | Dual Band Wi-Fi 6E RTL8125BG 2.5G LAN Bluetooth V5.3 |
| Audio | ALC1220 Codec |
| I/O Cạnh | Wireless antenna SMA connectors:2 HDMI™ port:1 USB 2.0:2 USB 3.2 Gen 2x2 Type-C port:1 USB 3.2 Gen 2 ports:2 USB 3.2 Gen 1 ports:3 Clear CMOS button:1 LAN (RJ45) port:1 Audio jacks:5 Optical S/PDIF Out port:1 |
| I/O nội bộ | 24-pin ATX power connector:1 8+4-pin ATX 12V power connector:1 4-pin CPU_FAN connector:1 4-pin AIO_PUMP connector:1 4-pin SYS_FAN connectors:5 NZXT RGB LED connectors:4 5V ARGB LED connector:2 USB 2.0 header (Up to 4 USB 2.0 ports):2 USB 3.2 Gen1 header (Up to 2 USB 3.2 Gen 1 ports):1 USB 3.2 Gen2x2 front panel header (For USB Type-C):1 Front panel audio connector:1 Power button:1 Reset button:1 POST LEDs:4 |
