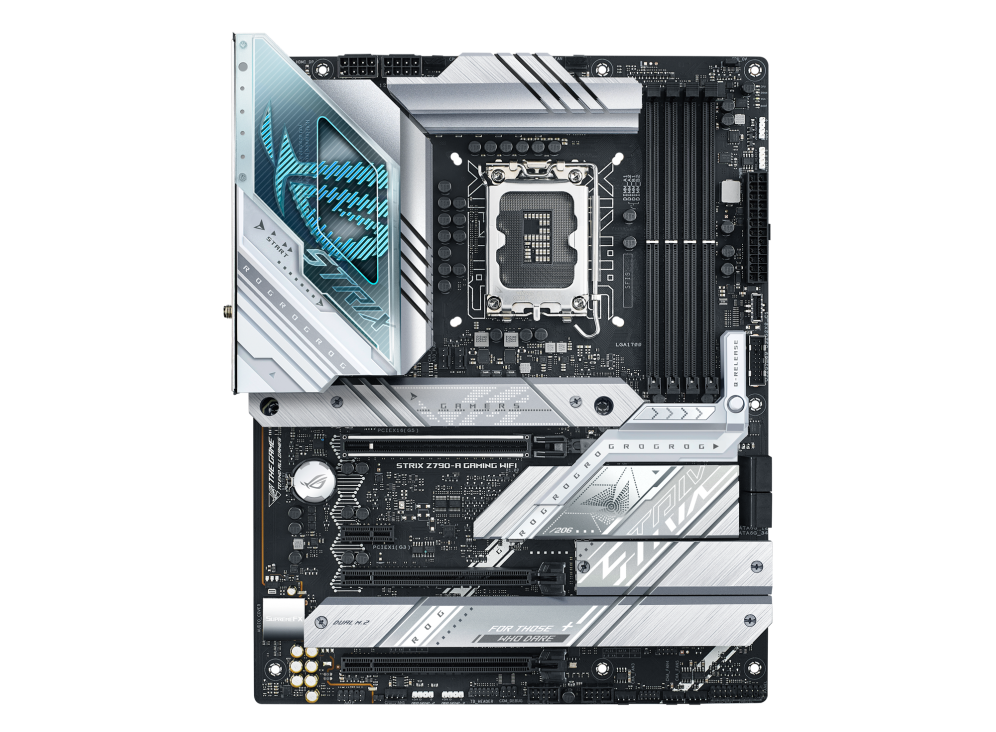

Mainboard ROG STRIX Z790 A GAMING WIFI
9,890,000₫
- Hỗ trợ CPU Intel thế hệ thứ 12 và 13
- Socket: LGA1700 , Chipset: Z790
- Hỗ trợ RAM: 4 khe DDR4, tối đa 128Gb
- Chuẩn mainboard: ATX
Sản phẩm | Bo mạch chủ |
Tên Hãng | Asus |
Model | ROG STRIX Z790-A GAMING WIFI |
CPU hỗ trợ | Intel |
Chipset | Intel Z790 Chipset |
RAM hỗ trợ | 4 x DIMM, Max. 128GB, DDR4 DDR4 |
5333(OC)/5133(OC)/5066(OC)/5000(OC) | |
4800(OC)/4700(OC)/4600(OC)/4500(OC) | |
4400(OC)/4266(OC)/4133(OC)/4000(OC) | |
3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC) | |
3200/3000/2933/2800/2666/2400/2133 | |
Non-ECC, Un-buffered Memory | |
Khe cắm mở rộng | Intel® 13th & 12th Gen Processors |
1 x PCIe 5.0 x16 slot | |
Intel® Z790 Chipset | |
2 x PCIe 4.0 x16 slots (support x4/x4 mode) | |
1 x PCIe 3.0 x1 slot | |
Ổ cứng hỗ trợ | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
Intel® 13th & 12th Gen Processors | |
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
Intel® Z790 Chipset | |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) | |
4 x SATA 6Gb/s ports | |
Cổng kết nối (Internal) | Fan and Cooling related |
1 x 4-pin CPU Fan header | |
1 x 4-pin CPU OPT Fan header | |
1 x 4-pin AIO Pump header | |
5 x 4-pin Chassis Fan headers | |
Power related | |
1 x 24-pin Main Power connector | |
2 x 8-pin +12V Power connectors | |
Storage related | |
4 x M.2 slots (Key M) | |
4 x SATA 6Gb/s ports | |
USB | |
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) | |
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
Miscellaneous | |
3 x Addressable Gen 2 headers | |
1 x Aura RGB header | |
1 x CPU Over Voltage jumper | |
1 x Front Panel Audio header (AAFP) | |
1 x 20-3 pin System Panel header with Chassis intrude function | |
1 x Thermal Sensor header | |
1 x Thunderbolt™ header | |
Cổng kết nối (Back Panel) | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) |
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®) | |
4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
2 x USB 2.0 ports (2 x Type-A) | |
1 x DisplayPort | |
1 x HDMI® port | |
1 x Wi-Fi Module | |
1 x Intel® 2.5Gb Ethernet port | |
5 x Audio jacks | |
1 x Optical S/PDIF out port | |
1 x BIOS FlashBack™ button | |
1 x Clear CMOS button | |
LAN / Wireless | Wi-Fi 6E |
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
1 x Intel® 2.5Gb Ethernet | |
ASUS LANGuard | |
Kích cỡ | ATX Form Factor |
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
