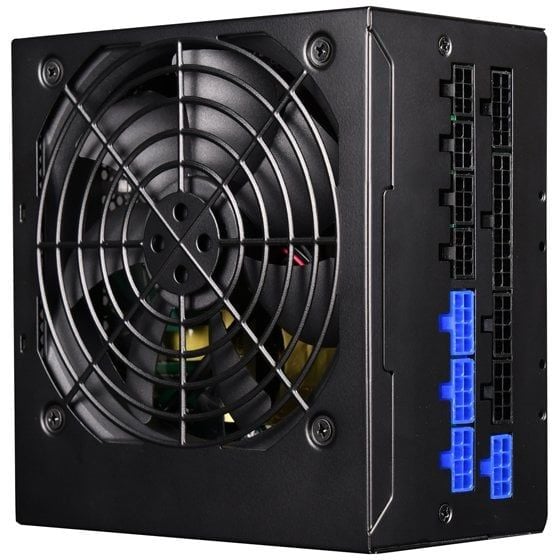

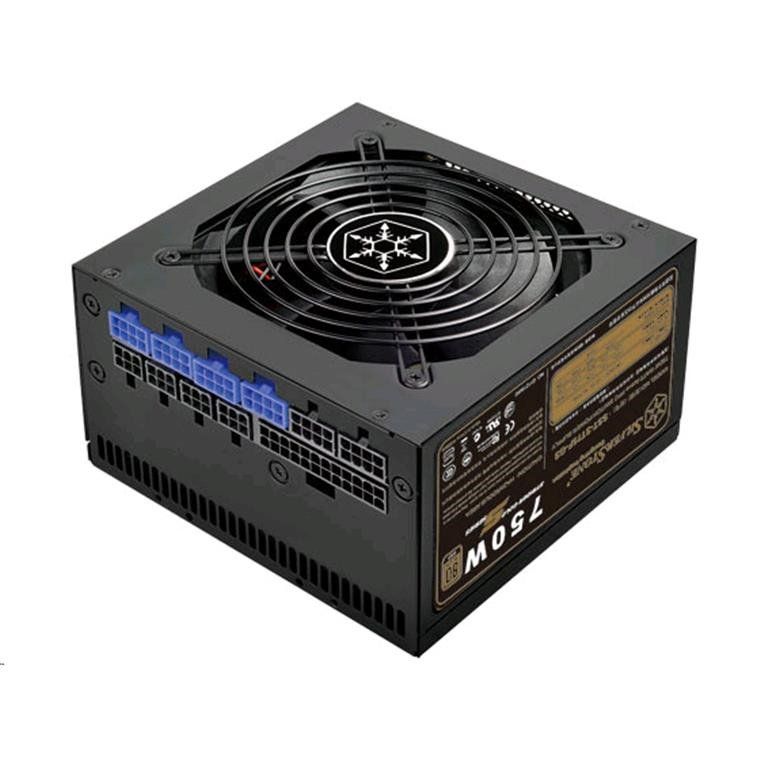

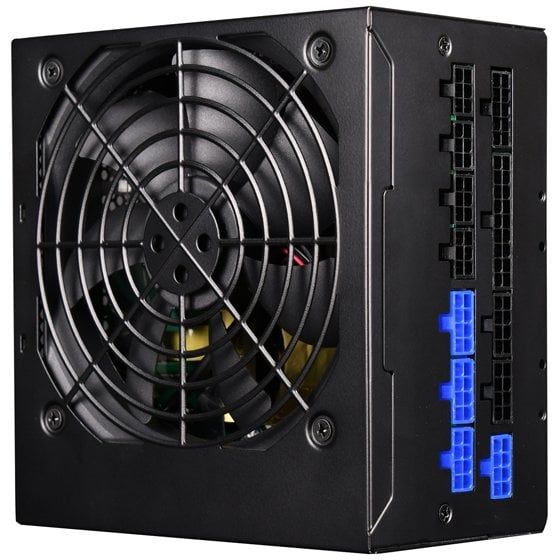

Silverstone St75S-Gs 750W Full Modular 80 Plus Gold

Silverstone St75S-Gs 750W Full Modular 80 Plus Gold

Name: Silverstone St75S-Gs 750W Full Modular 80 Plus Gold
Brand: Khác
SKU: BH 36T
Price: 2390000₫ VND
Availability: InStock

Mã sản phẩm: BH 36T

2,390,000₫ 3,000,000₫

Tiết kiệm 610,000₫

Bảo hành: 36 Tháng

Thông số kỹ thuật

ST75F-GS

￭ Compact design with a depth of 140mm for easy integration

￭ 80 PLUS Gold certification

￭ 100% modular cables

￭ 24/7 continuous power output with 40℃ operating temperature

￭ Class-leading single +12V rail

￭ Strict ±3% voltage regulation and low ripple & noise

￭ Silent running 120mm fan with 18dBA minimum
Warranty 3 Years

Remark

(1) Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity		(2) Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use



(3) ±3% regulation and low ripple & noise performance for high stability		(4) Strider Gold S PSUs are the first power supply models in the world to include flat 24pin cables. This cable offers much greater flexibility for tighter folding and superior cable management


(5) 140mm depth sets new standard for high wattage PSUs with modular cables		(6) 100% modular cable design for easy removal


(7) Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking

24/7 continuous power output with 40°C operating temperature (V3.0)

Strict ±3% voltage regulation and low ripple & noise (V3.0)

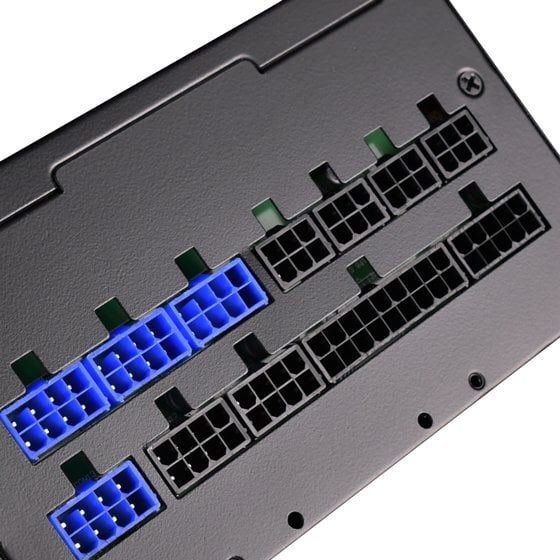

1 x 24 / 20-Pin motherboard connector

1 x 8 / 4-Pin EPS / ATX 12V connector

4 x 8/6-Pin PCIE connector

8 x SATA connector

6 x 4-Pin Peripheral connector

2 x 4-Pin Floppy connector

Included cables, screws, and documentation

SPECIFICATIONS

Model No.

SST-ST75F-GS (V3.0)

Max. DC Output

750W

Load Range
	+3.3V	+5V	+12V	+5VSB	-12V
Max.(Amps)	20A	20A	62A	2.5A	0.3A
Min.(Amps)	0A	0A	0A	0A	0A
Range (%)	±3%	±3%	±3%	±5%	±10%
Line Reg.(%)	±1%	±1%	±1%	±1%	±1%
Ripple(mVp-p)	50mV	50mV	120mV	50mV	120mV

Power density

415W per liter

Color

Black (lead-free paint)

Combined +3.3V & +5V

100W

Combined +12V

744W

Input Voltage

90V~264V

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC.（PF>0.9 at Full Load）

Efficiency

87%~90% at 20%~100% loading

MTBF

100,000 hours

Operating temperature

0°C ~ 40°C

Protection

Over power protection
Over current protection
Over voltage protection
Over temperature protection
Under voltage protection
Short circuit protection

Connectors

1 x 24 / 20-Pin motherboard connector（600mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（550mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（750mm）
4 x 8/6-Pin PCIE connector（"550mm"）
8 x SATA connector（"600mm /150mm / 150mm / 150mm" x 2）
6 x 4-Pin Peripheral connector（”600mm / 150mm / 150mm” x 2）
2 x 4-Pin Floppy connector（150mm）

Cooling System

Single 120mm silent fan

Form factor

ATX

Noise Level

18 dBA minimum

Dimension

150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)

Weight

1.31 kg

Certification

80 PLUS Gold

Other

GPU Support list
Compatible with ATX12V v2.4

● ST75F-GS(V3.0) is 100% modular cable design power supply, and the 24 pin connector design is 18+10pin to 24pin (20+4) +4 pin. Therefore, the PP05-E and PP06 24pin cables can’t be used in ST75F-GS(V3.0) .

Model No.

SST-ST75F-GS (V2.0)

Max. DC Output

750W

Load Range
	+3.3V	+5V	+12V	+5VSB	-12V
Max.(Amps)	22A	22A	62.5A	3.0A	0.3A
Min.(Amps)	0.5A	0.2A	0A	0A	0A
Range (%)	±3%	±3%	±3%	±5%	±10%
Line Reg.(%)	±1%	±1%	±1%	±1%	±1%
Ripple(mVp-p)	50mV	50mV	120mV	50mV	120mV

Power density

415W per liter

Color

Black (lead-free paint)

Combined +3.3V & +5V

120W

Combined +12V

750W

Input Voltage

90V~264V

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC.（PF>0.95 at Full Load）

Efficiency

87%~90% at 20%~100% loading

MTBF

100,000 hours

Operating temperature

0°C ~ 40°C

Protection

Over power protection
Over current protection
Over voltage protection
Over temperature protection
Under voltage protection
Short circuit protection

Connectors

1 x 24 / 20-Pin motherboard connector（550mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（750mm）
4x 8/6-Pin PCIE connector（"550mm / 150mm'"x2）
8 x SATA connector（"600mm / 150mm / 150mm /150mm" x 2）
6 x 4-Pin Peripheral connector（"600mm / 150mm / 150mm"x2）
2 x 4-Pin Floppy connector（"600mm / 150mm / 150mm / 150mm"x2）

Cooling System

Single 120mm silent fan

Form factor

ATX

Noise Level

18 dBA minimum

Dimension

150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)

Weight

1.58 kg

Certification

80 PLUS Gold
