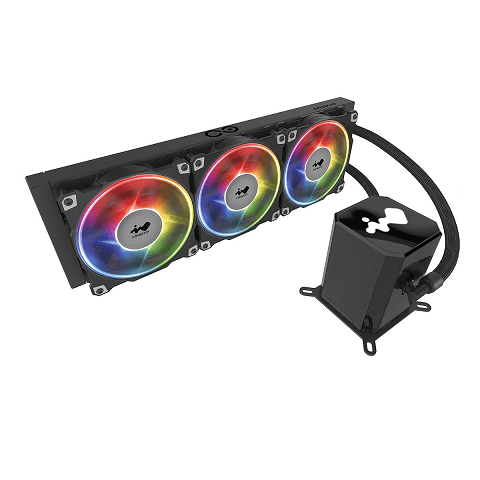

Tản nhiệt nước Inwin SR36 RGB
DUAL CHAMBER
Patented Integrated Twin Turbines
The patented twin-turbine function runs parallel with one another and functions simunateously to push both currents toward the copper cold-plate to significantly reduce the temperature and keep hardware cool.
If one pump fails, the other pump will still function while a cautionary LED will warn users
Cautionary LEDs
The pump illuminates a white LED logo under normal circumstances. If it detects an unusual current or excessive heat, the LEDs will flash red and blue to prevent damaging components.
Warning
Normal
Radiator Fans that Flow!
The Jupiter series AJF120 case fans are specially designed for liquid-cooling. The fans feature high airflow (101.5 CFM), high static pressure (4.22mm H2O) and possesses a high-speed mode that ramp up the RPMs to 2500.
Approach to Noise Reduction
The noise of an All-In-One liquid cooling radiator is difficult to control. The main reason is because of the way the high airflow sounds when it runs through the traditional radiator fins. To combat this, the SR series feature the AJF120 fans to provide the best operation performance, while reducing noise pollution.
Array of Microchannel Fins
The SR series possesses a high waterflow pump, which enhances cooling performance directly on the copper plate to cool the CPU. The copper plate hosts an array of microchannel fins that dissipates heat.
Specifications
| Model | SR36 | |
| Model Number | IW-LC-SR36 | |
| CPU Socket Support | Intel® LGA 2066/2011-V3/2011/1366/1156/1155/1151/1150/1200 AMD® AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1/TR4 | |
| Radiator | Dimensions | 397 x 120 x 27 mm (15.6 x 4.7 x 1.1") |
| Material | Aluminium | |
| Tube Length | 400 mm | |
| Tube Material | Rubber with Nylon Braided Sleeve | |
| Water Block & Pump | Dimensions | 68 x 68 x 100 mm |
| Materials | Copper, Plastic | |
| Pump Speed | 2400±10%RPM | |
| Fan | Model | Jupiter Series AJF120 |
| Quantity Included | 3 PCS | |
| Dimensions | 120 x 120 x 26 mm | |
| Speed Mode (PWM) | PWM 500-2500 RPM +/- 10% | |
| Noise Level | 23 dBA (normal) | |
| Airflow | 101.5 CFM (max) | |
| Static Pressure | 4.22 mm-H2O | |
| Connectors | 4-pin (12V, PWM) , 3-pin (5V, ARGB) | |
| Bearing Type | Double Ball Bearing | |

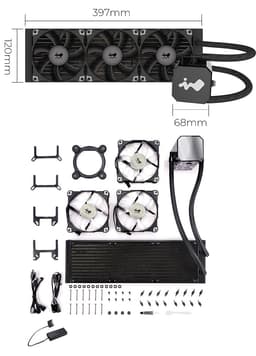

| Package Contents | InWin SR series 360mm CPU Liquid Cooler *1 | |
| InWin AJF120 Addressable Fan * 3 | ||
| ARGB One-Click Controller | ||
| Fan and Radiator Mounting Screws Pack | ||
| Mounting Kit for CPU Sockets | ||
| Cable Pack | ||
| Package Dimensions (H x W x D) | 142 x 244 x 459 mm (5.6" x 9.6" x 18") | |
| Warranty | 5 Years | |
