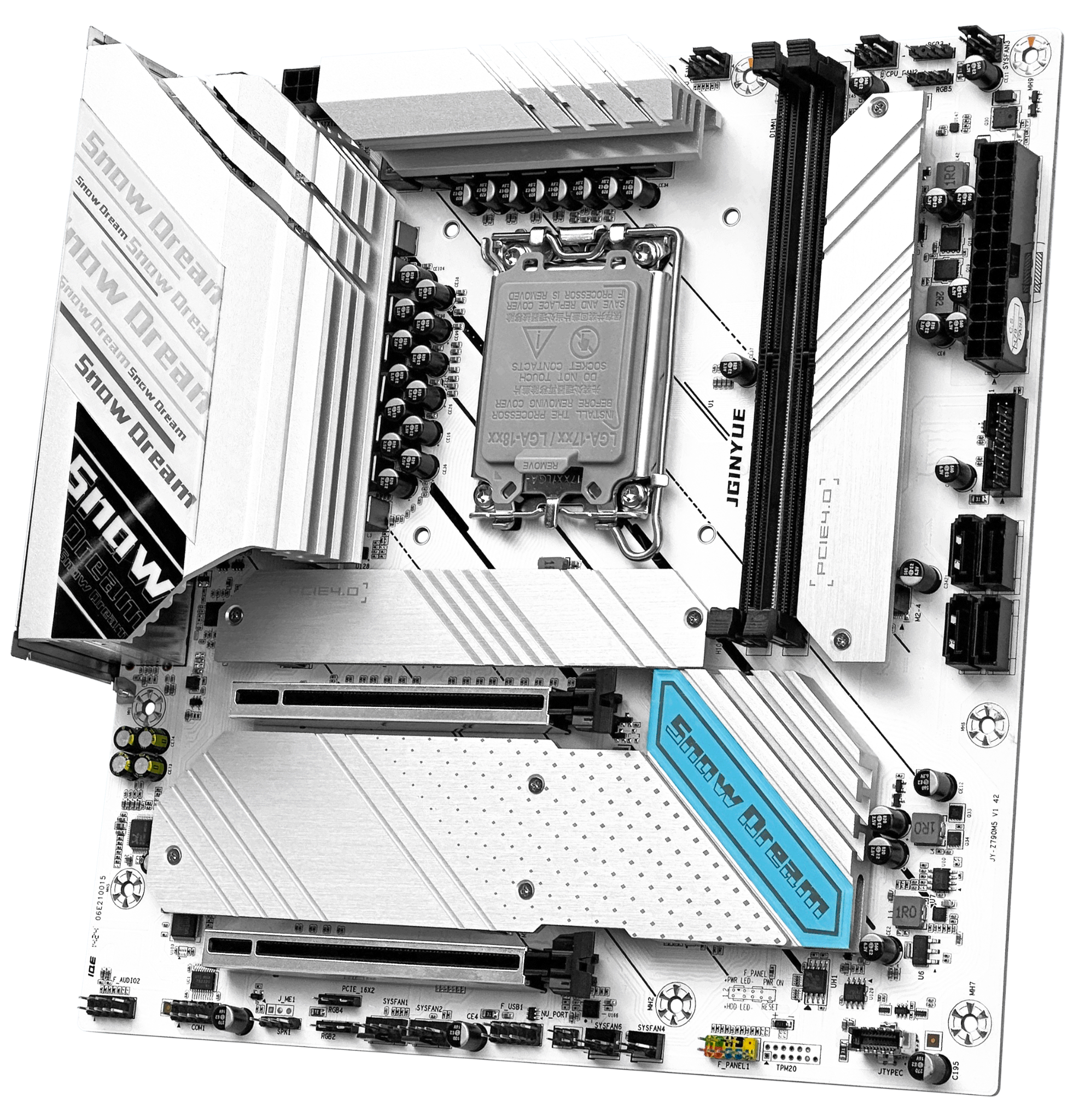

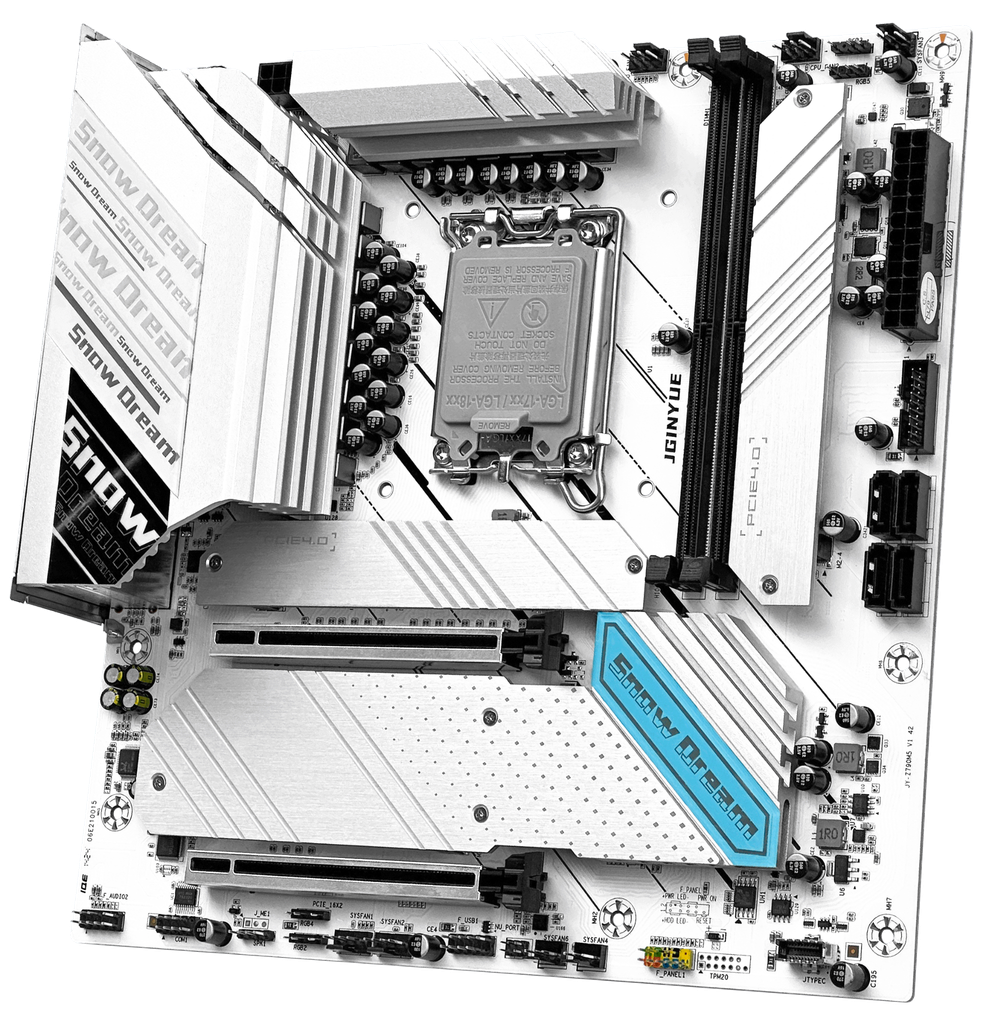

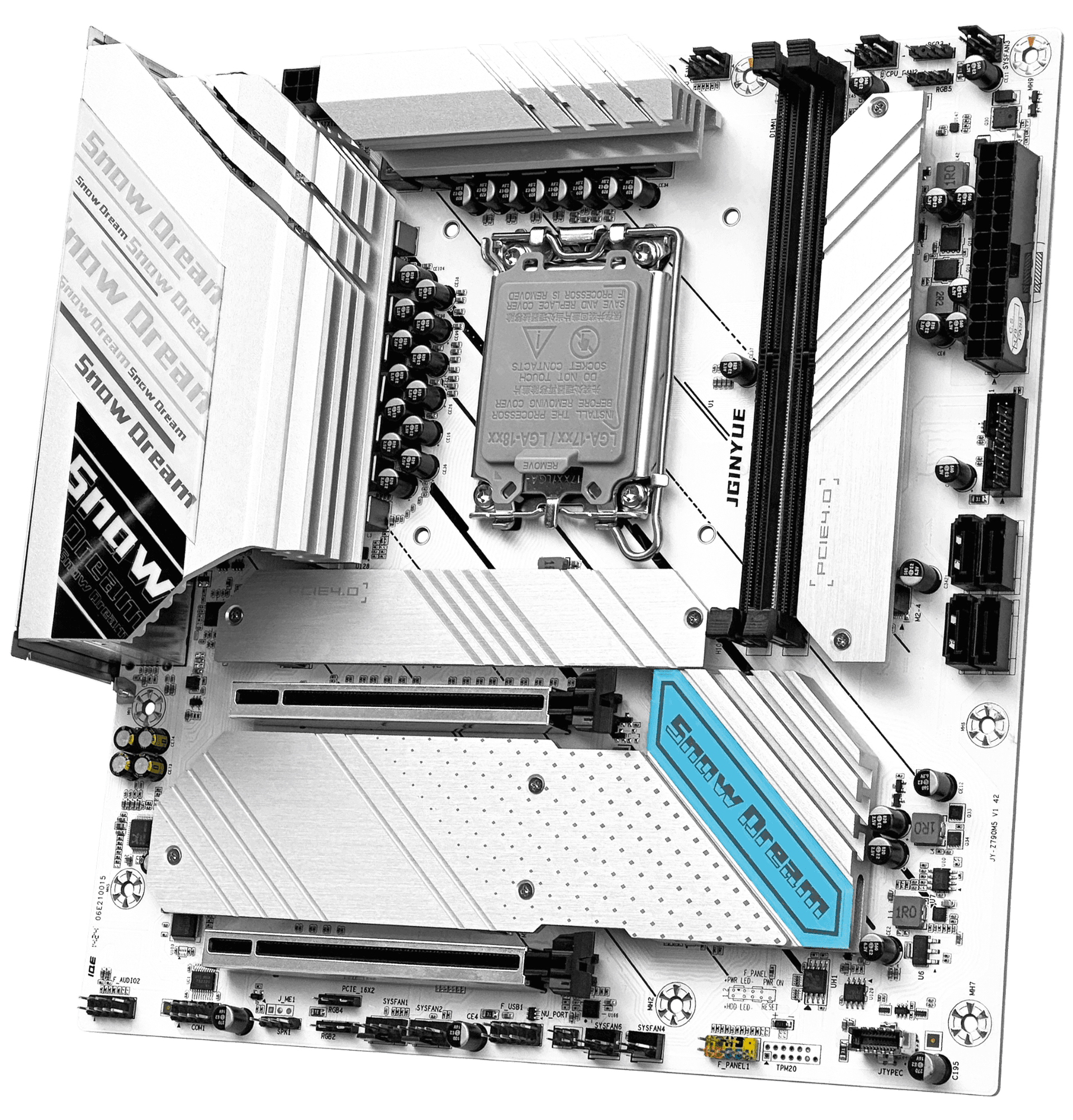

Z790M Snow Dream D5 motherboard V1.42
Product model
Z790M Snow Dream D5 motherboard V1.42 version
Chipset
Intel Z790
CPU pins
Supports Intel's 12th, 13th, and 14th generation LGA1700 platform processors
Memory slot
2 DDR5 memory slots
Memory standard
Supports DDR5 [single maximum frequency up to 8000+(OC)] dual channel 7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz (supports XMP technology/actual conditions may vary depending on different CPU and memory configurations)
Maximum capacity of memory module
Supports up to 96G

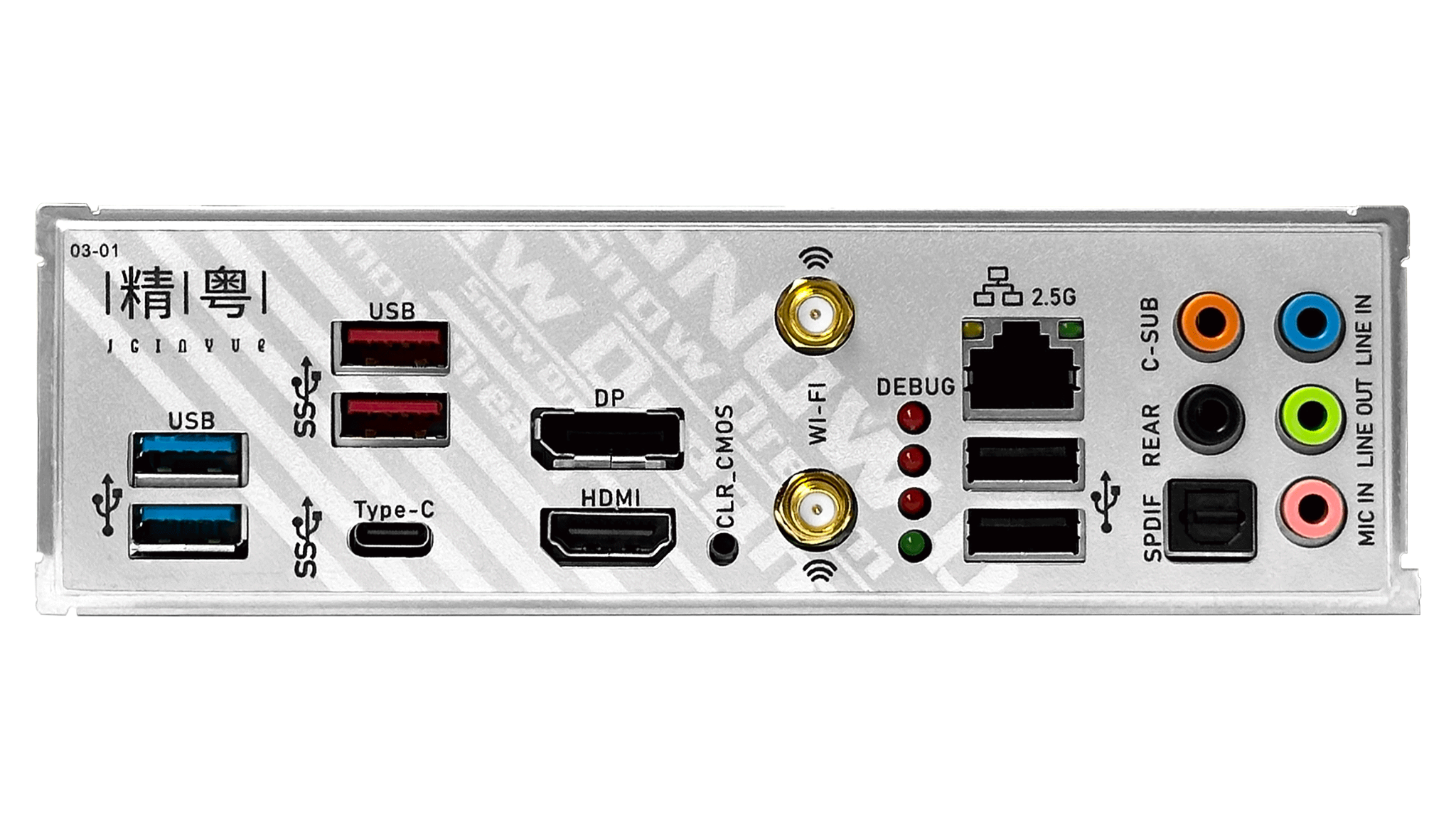

Display interface
1 HDMI interface, 1 DP interface
Storage interface
4 SATA3.0 6Gbps interfaces; Four M.2 nvme protocol 4.0 interfaces
USB interface
2 USB3.2 interfaces, 2 USB3.0, 2 USB2.0, 1 set of USB2.0 pins, can expand 2 USB2.0 and 1 set of USB3.2 pins, can expand 2 USB3.2 pins
Expansion Slots
1 PCI Express x16 4.0 slot; 1 PCI Express x16 4.0 slot (X4 speed)
Wireless interface
1 WiFi interface compatible with PCIE and CNVI protocol modules
Onboard sound card
Realtek ALC897
Onboard network card
RTL8125BG 2.5G Ethernet network chip
Power supply socket
24Pin+8Pin+4Pin
Fan pin
4 pieces with 4 needles; Three 3-pin needles
Number of power supply phases
14+1+1 phase DR MOS power supply
RGB pin
4 5v3 pin ARGB pins (independent MCU control chip)
Type-C interface
1 Type-C interface; 1 Type-E interface
Main board size
24.5cmx24.5cm; M-ATX
support system
Windows 10; Windows 11
Other interfaces
1 one click clear bios button; 1 SPK1 buzzer pin; DEBUG diagnostic light
